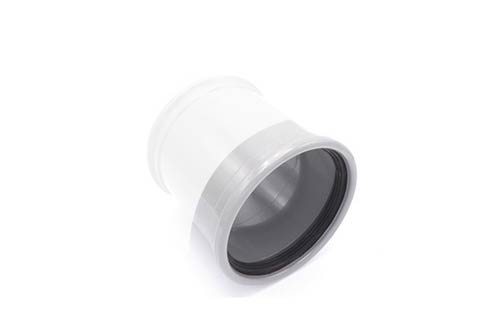

Pipe sleeve

Code

CT000017

Version

Group

Connection Type Classes (MG000001)

Release

Drawing

Features

	01	DN	Nominal diameter EF023191 - Alphanumeric
	02	Di	Inner diameter (mm) EF000065 - Numeric
	03	Do	Outer diameter (mm) EF000015 - Numeric
	04	L	Length (mm) EF001438 - Numeric
	05	P	Sleeve length (mm) EF010520 - Numeric
	06	Z	Working length (mm) EF006318 - Numeric

Synonyms

Female thread

Glued sleeve

Glued socked

Inner thread / Sleeve

Inner threaded connection

Internal thread

Pipe sleeve

Pipe socket

Sleeve

Slide sleeve

Sliding socket

Soldered sleeve

Soldering joint

Threaded sleeve

Threaded socket
