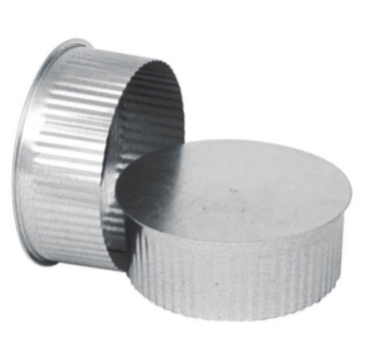

Duct insert end round
Code
CT000033Version
3
Group
Connection Type Classes (MG000001)Release
Drawing
Features
01 | Do | Outer diameter (mm) EF000015 - Numeric | |
02 | Hr | Rim height (mm) EF018627 - Numeric | |
03 | L | Length (mm) EF001438 - Numeric | |
04 | s | Wall thickness (mm) EF000229 - Numeric | |
05 | t | Rim thickness (mm) EF010038 - Numeric | |
06 | Z | Working length (mm) EF006318 - Numeric |
Synonyms
Duct insert end round
