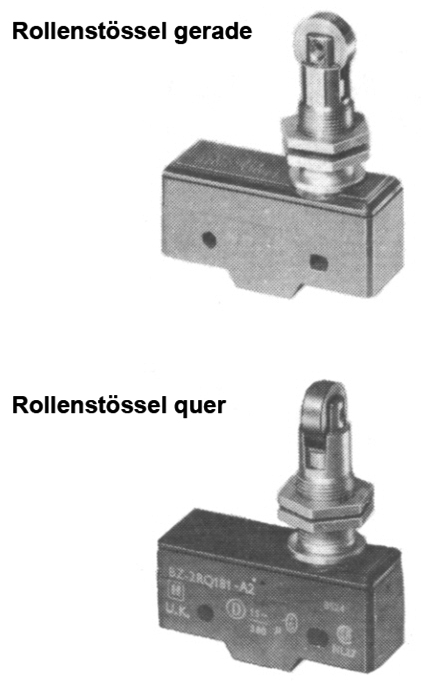

End switch
Code
EC000030Version
Group
Sensors for automation technology (EG020099)Release
DYNAMIC, ETIM-10.0
Features
01 | Width sensor (mm) EF007094 - Numeric | |
02 | Diameter sensor (mm) EF007111 - Numeric | |
03 | Height of sensor (mm) EF007283 - Numeric | |
04 | Length of sensor (mm) EF007334 - Numeric | |
05 | Rated operation current Ie at AC-15, 24 V (A) EF007084 - Numeric | |
06 | Rated operation current Ie at AC-15, 125 V (A) EF007082 - Numeric | |
07 | Rated operation current Ie at AC-15, 230 V (A) EF001385 - Numeric | |
08 | Rated operation current Ie at DC-13, 24 V (A) EF007087 - Numeric | |
09 | Rated operation current Ie at DC-13, 125 V (A) EF007085 - Numeric | |
10 | Rated operation current Ie at DC-13, 230 V (A) EF001386 - Numeric | |
11 | Switching function EF000189 - Alphanumeric | |
12 | Switching function latching EF007447 - Logical | |
13 | Output electronic EF006987 - Logical | |
14 | Forced opening EF006694 - Logical | |
15 | Number of safety auxiliary contacts EF006940 - Numeric | |
16 | Number of contacts as normally closed contact EF008255 - Numeric | |
17 | Number of contacts as normally open contact EF008256 - Numeric | |
18 | Number of contacts as change-over contact EF008257 - Numeric | |
19 | Type of interface EF006977 - Alphanumeric | |
20 | Type of interface for safety communication EF003956 - Alphanumeric | |
21 | Construction type housing EF004008 - Alphanumeric | |
22 | Housing material EF001596 - Alphanumeric | |
23 | Coating housing EF001601 - Alphanumeric | |
24 | Type of control element EF006976 - Alphanumeric | |
25 | Alignment of the control element EF008793 - Alphanumeric | |
26 | Type of electric connection EF003961 - Alphanumeric | |
27 | With status indication EF001602 - Logical | |
28 | Suitable for safety functions EF001597 - Logical | |
29 | Explosion safety category for gas EF003997 - Alphanumeric | |
30 | Explosion safety category for dust EF003998 - Alphanumeric | |
31 | Ambient temperature during operating (°C) EF007515 - Range | |
32 | Degree of protection (IP) EF005474 - Alphanumeric | |
33 | Degree of protection (NEMA) EF011959 - Alphanumeric |
Synonyms
Alignment switch
Cabinet door switch
Circuit breaker
Door panel switch
Door switch
End contact
End switch
Hinge switch
Interlock switch
Key switch
Limit switch
Micro switch
Panel switch
Pen switch
Position switch
Safety gate switch
Safety limit switch
Safety position switch
Safety switch
Switch
Switch with separate actuator
