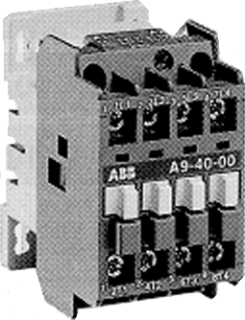

Power contactor, AC switching
Code
EC000066Version
Group
Low-voltage control systems (EG020090)Release
DYNAMIC, ETIM-10.0
Features
01 | Rated control supply voltage AC 50 Hz (V) EF003978 - Range | |
02 | Rated control supply voltage AC 60 Hz (V) EF003979 - Range | |
03 | Rated control supply voltage DC (V) EF003980 - Range | |
04 | Voltage type for actuating EF008242 - Alphanumeric | |
05 | Number of normally closed contacts as main contact EF001375 - Numeric | |
06 | Number of normally open contacts as main contact EF001374 - Numeric | |
07 | Type of electrical connection of main circuit EF006819 - Alphanumeric | |
08 | Operating voltage AC 50 Hz (V) EF008206 - Range | |
09 | Operating voltage AC 60 Hz (V) EF008207 - Range | |
10 | Rated operation current Ie at AC-1, 400 V (A) EF001393 - Numeric | |
11 | Rated operation current Ie at AC-3, 400 V (A) EF001392 - Numeric | |
12 | Rated operation power at AC-3, 400 V (kW) EF001364 - Numeric | |
13 | Rated operation current Ie at AC-4, 400 V (A) EF008495 - Numeric | |
14 | Rated operation power at AC-4, 400 V (kW) EF008496 - Numeric | |
15 | Rated operation power NEMA (kW) EF011960 - Numeric | |
16 | Number of auxiliary contacts as normally open contact EF001376 - Numeric | |
17 | Number of auxiliary contacts as normally closed contact EF001377 - Numeric | |
18 | Suitable for distribution board EF001126 - Logical | |
19 | Width (mm) EF000008 - Numeric | |
20 | Height (mm) EF000040 - Numeric | |
21 | Depth (mm) EF000049 - Numeric |
Synonyms
Contactor
Contactor, AC-switching
Magnet contactor, AC-switching
Mini contactor
Power contactor, AC switching
Power relay
Relay
Star-delta contactor
Switch module
