    Solderless terminals for copper conductors

    Code

    EC001052

    Version

    9

    Group

    Electrical installation, isolation and connection material (EG000047)

    Release

    ETIM-10.0
    nl 2BA se RSK be InstallData fi Sahkonumerot
    Features

    01

    Bolt dimension (metric)

    EF003649 - Numeric

    02

    Flange shape

    EF001339 - Alphanumeric

    03

    Insulation

    EF000155 - Alphanumeric

    04

    Colour insulation

    EF001715 - Alphanumeric

    05

    Nominal cross section (mm²)

    EF005124 - Range

    06

    Reel/roll packaging

    EF001714 - Logical

    07

    Sleeve form

    EF007866 - Alphanumeric

    08

    Min. AWG-size

    EF012178 - Alphanumeric

    09

    Max. AWG-size

    EF012179 - Alphanumeric

    10

    Suitable for solid conductors

    EF007816 - Logical

    11

    Suitable for stranded conductors

    EF007818 - Logical

    12

    Suitable for fine strand conductors

    EF007804 - Logical

    13

    Suitable for high temperatures (to 650 °C)

    EF007812 - Logical

    14

    Suitable for insulated varnish

    EF007815 - Logical

    15

    Suitable for round conductors

    EF007820 - Logical

    16

    Suitable for flat conductors

    EF007805 - Logical

    17

    For pull protected connections

    EF001343 - Logical

    18

    Material

    EF002169 - Alphanumeric

    19

    Surface protection

    EF000139 - Alphanumeric

    20

    Halogen free

    EF000025 - Logical

    21

    Max. current (Imax) (A)

    EF000877 - Numeric

    22

    Stud size (imperial)

    EF012177 - Alphanumeric

    23

    Flange length (mm)

    EF015682 - Numeric

    24

    Total length (mm)

    EF000369 - Numeric

    25

    Pin width (flat-pin shape terminal) (mm)

    EF015683 - Numeric

    26

    Pin diameter (pin shape terminal) (mm)

    EF015684 - Numeric

    27

    According to DIN

    EFDE0106 - Logical
    Synonyms

    Cable lug

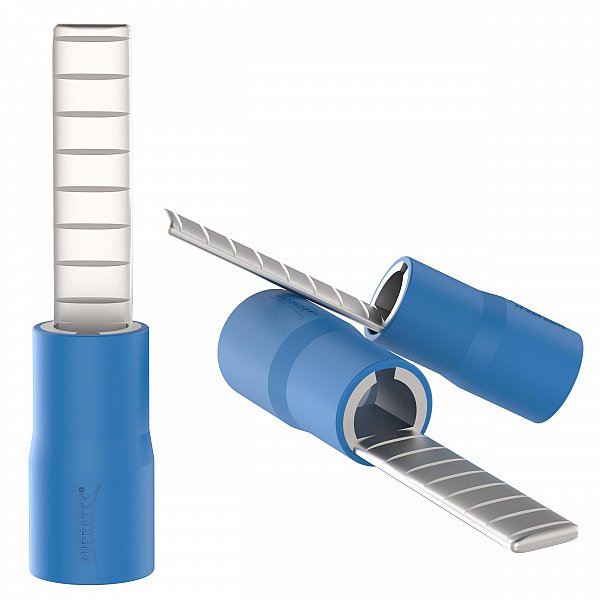

    Flat-pin shape terminal

    Flat-pin terminal

    Fork shape terminal

    Fork terminal

    Hook shape terminal

    Hook terminal

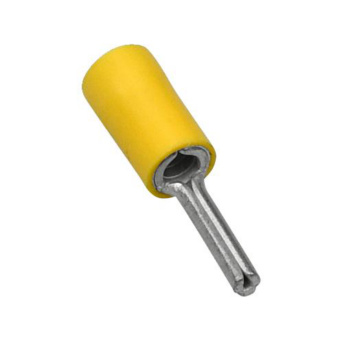

    Pin shape terminal

    Pin terminal

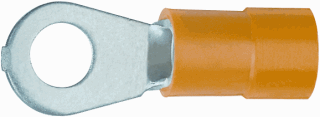

    Ring shape terminal

    Ring terminal

    Solderless copper terminals for copper conductors

    Solderless terminals for copper conductors
