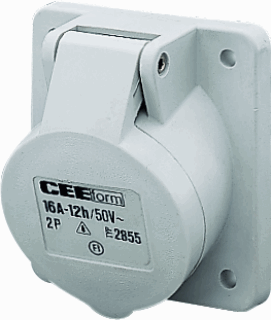

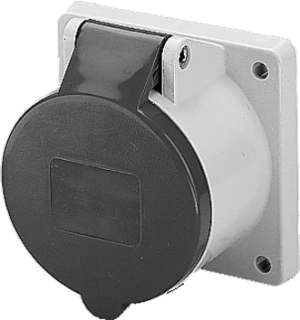

Panel-mounted CEE socket outlet (IEC 60309)
Code
EC001317Version
9
Group
Industrial sockets/plug applications (EG000014)Release
ETIM-9.0
Features
01 | IEC-amperage (A) EF002647 - Numeric | |
02 | Amperage according to UL/CSA (for UL-version) (A) EF002648 - Numeric | |
03 | Voltage according to EN 60309-2 EF006726 - Alphanumeric | |
04 | Rated voltage (V) EF003977 - Range | |
05 | Rated frequency (Hz) EF001663 - Range | |
06 | Number of poles EF001391 - Numeric | |

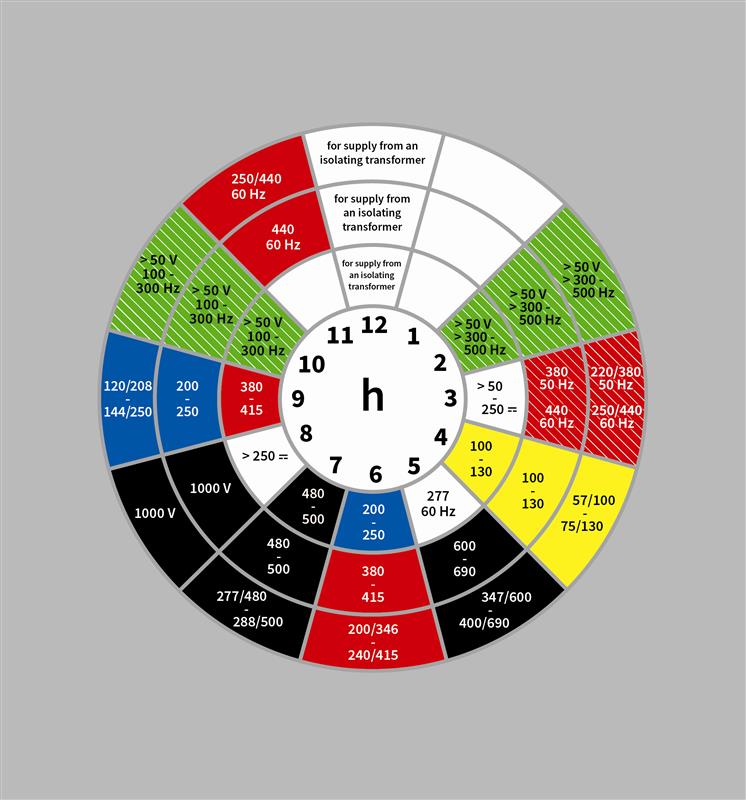

07 | Clock hour position (h) EF006584 - Numeric | |
08 | Identification colour EF006725 - Alphanumeric | |
09 | RAL-number EF000116 - Numeric | |
10 | Degree of protection (IP) EF005474 - Alphanumeric | |
11 | Connection system EF002649 - Alphanumeric | |
12 | Insert direction EF002650 - Alphanumeric | |
13 | Material EF002169 - Alphanumeric | |
14 | Contact material EF004019 - Alphanumeric | |
15 | Surface coating contacts EF002558 - Alphanumeric | |
16 | Military model EF006050 - Logical | |
17 | Flange size vertical (mm) EF008407 - Numeric | |
18 | Drill hole distance vertical (mm) EF008405 - Numeric | |
19 | Flange size horizontal (mm) EF008408 - Numeric | |
20 | Drill hole distance horizontal (mm) EF008406 - Numeric |
Synonyms
Built-in installation box
Panel-mounted CEE socket outlet
Panel-mounted CEE socket outlet (IEC 60309)
Socket outlet
Wall socket
