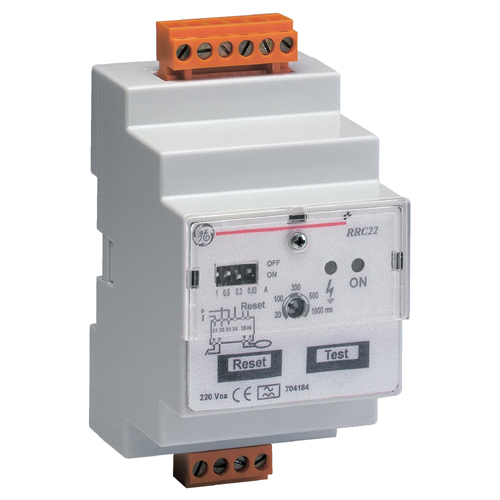

Residual current monitoring relay
Code
EC001445Version
Group
Relays (EG000019)Release
DYNAMIC, ETIM-9.0, ETIM-10.0
01 | Type of electrical connection EF003961 - Alphanumeric | |
02 | With detachable clamps EF003340 - Logical | |
03 | Function EF000030 - Alphanumeric | |
04 | External power supply required EF003292 - Logical | |
05 | Supply voltage type EF002991 - Alphanumeric | |
06 | Supply voltage AC 50 Hz (V) EF007532 - Range | |
07 | Supply voltage AC 60 Hz (V) EF007533 - Range | |
08 | Supply voltage DC (V) EF007534 - Range | |
09 | Voltage measuring range (V) EF002486 - Range | |
10 | Rated operating frequency (Hz) EF007024 - Range | |
11 | Current measuring range (mA) EF000417 - Range | |
12 | Current setting value 1 (mA) EF008204 - Range | |
13 | Current setting value 2 (mA) EF008205 - Range | |
14 | Minimum adjustable start delay when power is applied (s) EF008190 - Numeric | |
15 | Maximum adjustable start delay when power is applied (s) EF008189 - Numeric | |
16 | Differential current indicator EF003424 - Logical | |
17 | Error registration possible EF003423 - Logical | |
18 | Number of contacts normally closed EF008255 - Numeric | |
19 | Number of contacts normally open EF008256 - Numeric | |
20 | Number of change-over contacts EF008257 - Numeric | |
21 | Voltage type (operating voltage) EF005294 - Alphanumeric | |
22 | Operating voltage at AC 50 Hz (V) EF008206 - Range | |
23 | Operating voltage at AC 60 Hz (V) EF008207 - Range | |
24 | Operating voltage at DC (V) EF008208 - Range | |
25 | Rated switch current (A) EF006706 - Numeric | |
26 | Width (mm) EF000008 - Numeric | |
27 | Height (mm) EF000040 - Numeric | |
28 | Depth (mm) EF000049 - Numeric |
Current monitoring relay
Relay
Residual current monitoring relay
