Column radiator
Code
EC003539Version
Group
Radiators/convectors (EG015710)Release
ETIM-9.0
01 | Material EF002169 - Alphanumeric | |
02 | Number of elements EF001449 - Numeric | |
03 | Height (mm) EF000040 - Numeric | |
04 | Length (mm) EF001438 - Numeric | |
05 | Depth (mm) EF000049 - Numeric | |
06 | Depth from wall to front side (mm) EF024638 - Range | |
07 | Heat emission according to EN 442 20 °C - 55/45 (W) EF015667 - Numeric | |
08 | Heat emission according to EN 442 20 °C - 75/65 (W) EF024605 - Numeric | |
09 | Heat emission according to EN 442 20 °C - 70/40 (W) EF012564 - Numeric | |
10 | N-exponent EF024606 - Numeric | |
11 | Max. operating pressure (bar) EF020449 - Numeric | |
12 | Water content (l) EF002276 - Numeric | |
13 | Colour EF000007 - Alphanumeric | |
14 | RAL-number EF000116 - Numeric | |
15 | Mounting method EF000003 - Alphanumeric | |

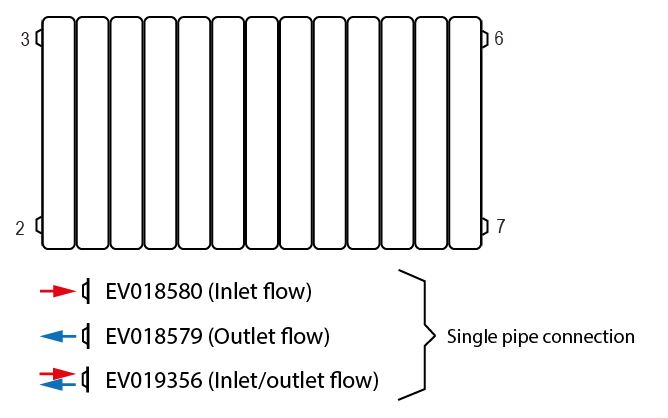

16 | Number of standard connections EF017574 - Numeric | |
17 | Connection 2, left side low EF016948 - Alphanumeric | |
18 | Connection 3, left side top EF016949 - Alphanumeric | |
19 | Connection 6, right side top EF016952 - Alphanumeric | |
20 | Connection 7, right side low EF016953 - Alphanumeric | |
21 | Thread size (inch) EF024307 - Alphanumeric | |
22 | Thread connection EF022726 - Alphanumeric | |
23 | With de-aerator EF020079 - Logical | |
24 | With drain valve EF020078 - Logical | |
25 | With consoles EF024677 - Logical | |
26 | With blind plugs EF024636 - Logical | |
27 | With mounting material EF006009 - Logical | |
28 | With integrated thermostatic valve EF024634 - Logical | |
29 | With support for seat EF015694 - Logical |
Column radiator
Sectionalized radiator
