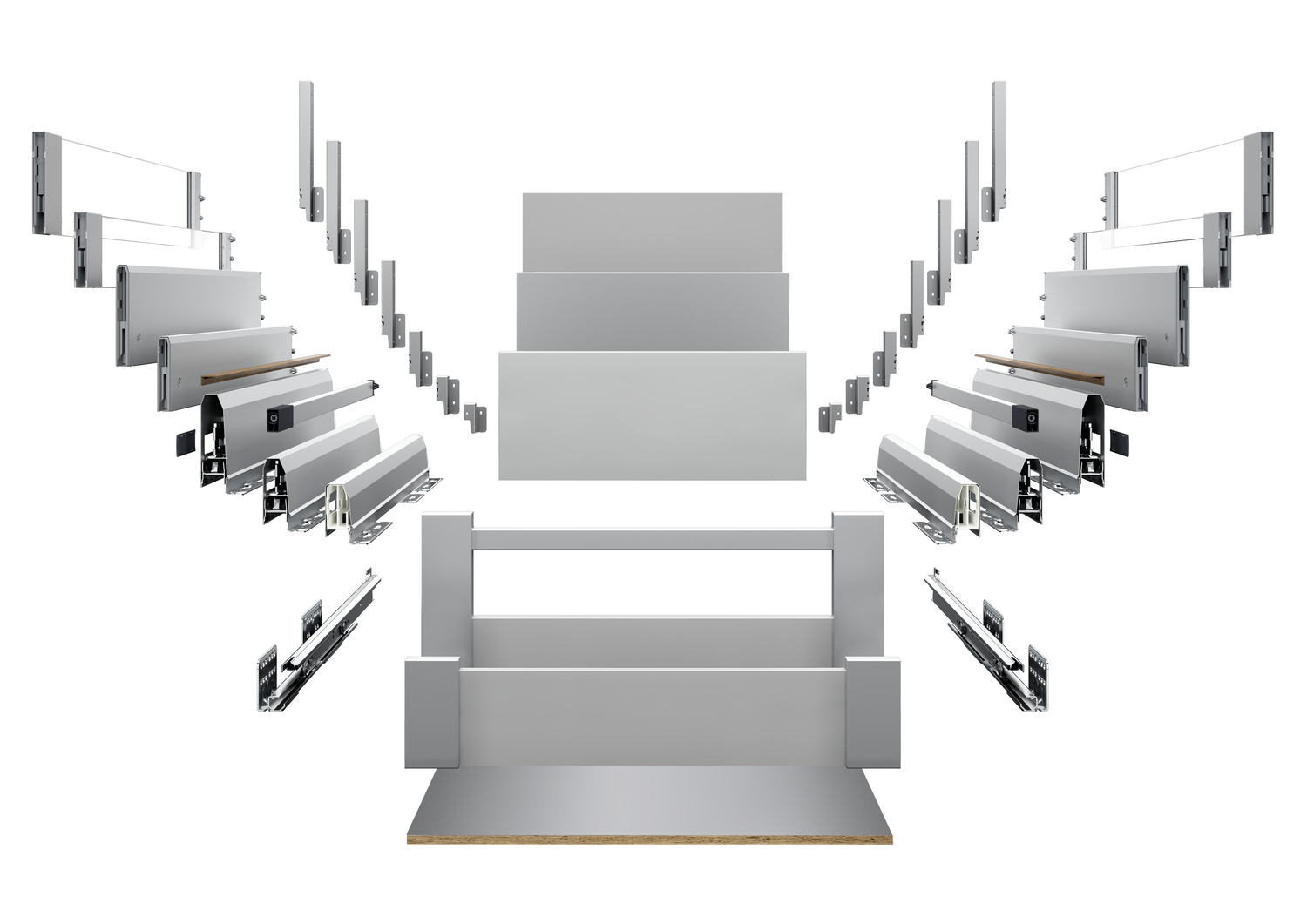

Component for drawer
Code
EC004423Version
Group
Furniture components (EG020059)Release
DYNAMIC, ETIM-10.0
Features
01 | Component EF019112 - Alphanumeric | |
02 | Model EF000010 - Alphanumeric | |
03 | Length (mm) EF001438 - Numeric | |
04 | Length (nominal) (mm) EF020848 - Numeric | |
05 | Adjustable depth EF022282 - Logical | |
06 | Built-in depth (mm) EF000218 - Numeric | |
07 | Adjustable height EF021457 - Logical | |
08 | Height (mm) EF000040 - Numeric | |
09 | Height (nominal) (mm) EF014664 - Numeric | |
10 | Built-in height (mm) EF000332 - Numeric | |
11 | Width (mm) EF000008 - Numeric | |
12 | Width (nominal) (mm) EF020849 - Numeric | |
13 | Built-in width (mm) EF000846 - Numeric | |
14 | Material EF002169 - Alphanumeric | |
15 | Surface treatment EF025109 - Alphanumeric | |
16 | Degree of gloss EF024897 - Alphanumeric | |
17 | Colour EF000007 - Alphanumeric | |
18 | For cabinet body side thickness (mm) EF019115 - Numeric | |
19 | Side adjustable EF019113 - Logical | |
20 | Inclination adjustable EF019114 - Logical | |
21 | Radial adjustment EF018808 - Logical | |
22 | Max. load capacity (kg) EF000258 - Numeric | |
23 | Endurance strength according to DIN EN 15338 EFDE0092 - Alphanumeric | |
24 | Corrosion resistance according to DIN EN 1670 EFDE0095 - Alphanumeric | |
25 | Corrosion resistance according to DIN EN 17737 EFDE0096 - Alphanumeric |
Synonyms
Back panel
Back panel connector
Back panel profile for cutting to length
Component for drawer
Drawer element
Drawer front
Drawer front connector
Drawer lengthway partition
Drawer partition
Drawer side profile
Drawer side set left/right
Drawer side with intake for design element
Internal drawer front
Internal drawer front for cutting to length
Internal front connector
Internal front with intak for design element
Longitudinal partition
Railing bar
Railing connector
Rear panel
