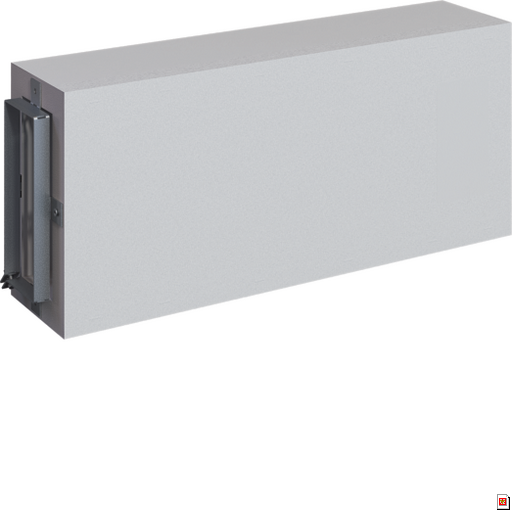

Busbar trunk unit with fire barrier
Code
EC004999Version
Group
Energy distribution systems (EG000015)Release
DYNAMIC
Features
01 | Shape EF000051 - Alphanumeric | |
02 | Model EF000010 - Alphanumeric | |
03 | Rated current AC 50 Hz (A) EF007684 - Numeric | |
04 | Rated voltage AC 50 Hz (V) EF007065 - Range | |
05 | Number of poles EF001391 - Numeric | |
06 | Number of conductors (without earthing) EF001148 - Numeric | |
07 | Degree of protection (IP) EF005474 - Alphanumeric | |
08 | Min. fire resistance class according to EN 13501-2 EF019327 - Alphanumeric | |
09 | Max. fire resistance class according to EN 13501-2 EF019326 - Alphanumeric | |
10 | Suitable for drywall EF015314 - Logical | |
11 | Suitable for solid wall EF015315 - Logical | |
12 | Min. clearance required within the fire penetration seal (mm) EF017297 - Logical | |
13 | Min. wall thickness (mm) EF013753 - Numeric | |
14 | Min. ceiling thickness (mm) EF006435 - Numeric | |
15 | Outer length (mm) EF024679 - Numeric | |
16 | Outer width (mm) EF008488 - Numeric | |
17 | Outer height (mm) EF008489 - Numeric |
Synonyms
Bus bar with fire barrier
Bus duct with fire barrier
Bus way with fire barrier
Busbar trunk unit with fire barrier
Busbar trunk unit with fire barrier block
Busbar with fire barrier
Busduct with fire barrier
Busway unit with fire barrier
Busway with fire barrier
Power distribution busway with fire barrier
