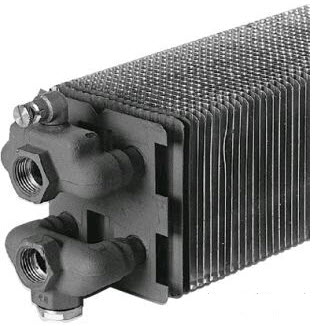

Convector element
Code
EC010218Version
Group
Radiators/convectors (EG015710)Release
ETIM-8.0, ETIM-9.0
Features
01 | Material heat exchanger EF020003 - Alphanumeric | |
02 | Shaft height above convector (mm) EF024665 - Numeric | |
03 | Height (mm) EF000040 - Numeric | |
04 | Height, convector element (mm) EF024666 - Numeric | |
05 | Length (mm) EF001438 - Numeric | |
06 | Depth (mm) EF000049 - Numeric | |
07 | Heat emission according to EN 442 20 °C - 75/65 (W) EF024605 - Numeric | |
08 | Heat emission according to EN 442 20 °C - 70/40 (W) EF012564 - Numeric | |
09 | N-exponent EF024606 - Numeric | |
10 | Max. operating pressure (bar) EF020449 - Numeric | |
11 | Water content (l) EF002276 - Numeric | |
12 | Mounting method EF000003 - Alphanumeric | |

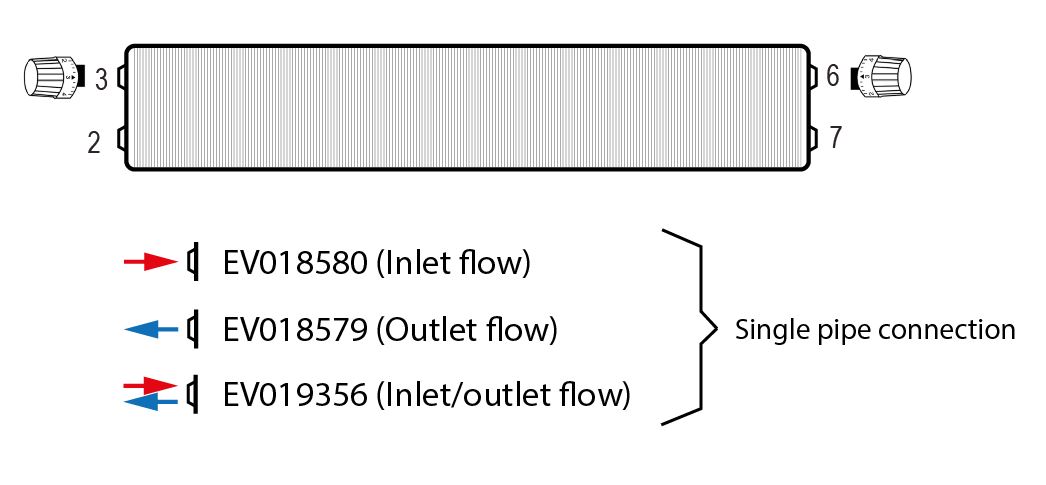

13 | Connection combi 11, underside left/underside left EF024615 - Logical | |
14 | Connection combi 21, side bottom-left/underside left EF024656 - Logical | |
15 | Connection combi 22, side bottom-left/side bottom-left EF024653 - Logical | |
16 | Connection combi 72, side bottom-right/side bottom-left EF026394 - Logical | |
17 | Connection combi 77, side bottom-right/side bottom-right EF024654 - Logical | |
18 | Connection combi 78, side bottom-right/underside right EF024655 - Logical | |
19 | Connection combi 88, underside right/underside right EF024616 - Logical | |
20 | Thread size (inch) EF024307 - Alphanumeric | |
21 | Thread connection EF022726 - Alphanumeric | |
22 | With de-aeration connection EF020224 - Logical | |
23 | With de-aerator EF020079 - Logical | |
24 | With drain possibility (connection) EF022470 - Logical | |
25 | Base height (mm) EF024659 - Range | |
26 | Heat emission according to EN 442 laboratory EF024649 - Logical | |
27 | With console EF024662 - Logical | |
28 | With partition panel EF007973 - Logical | |
29 | Height, bracket/separating partition (mm) EF024664 - Numeric |
Synonyms
Convector element
