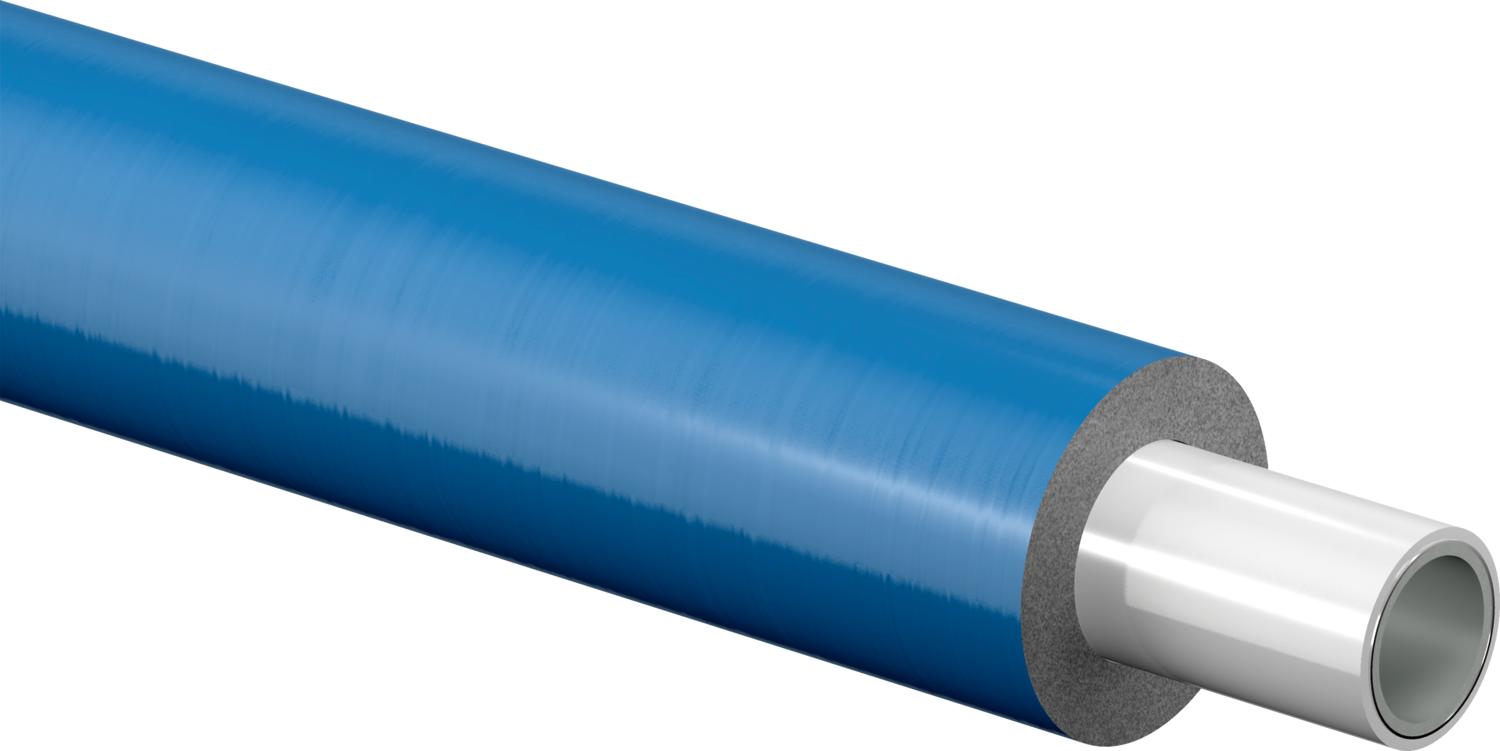

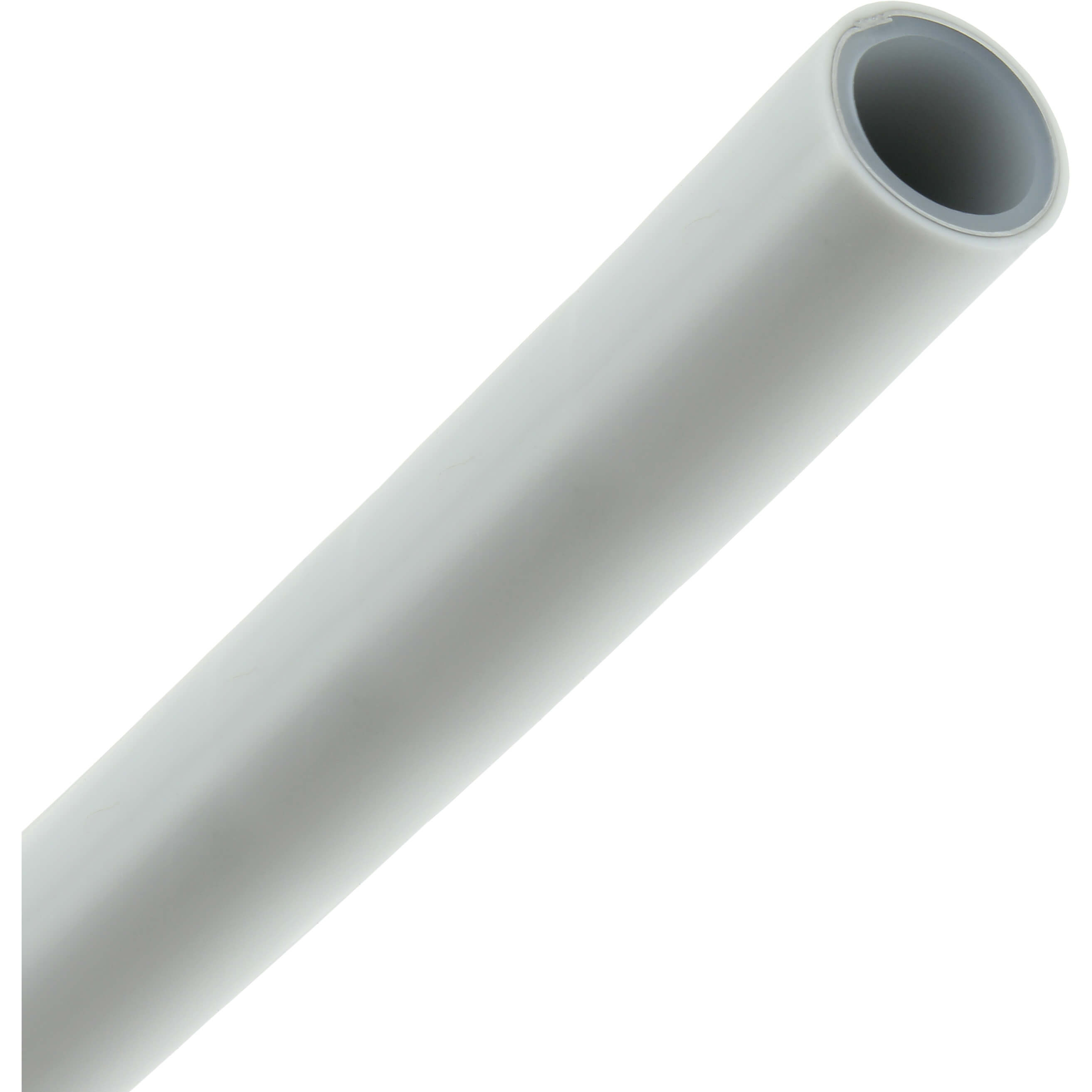

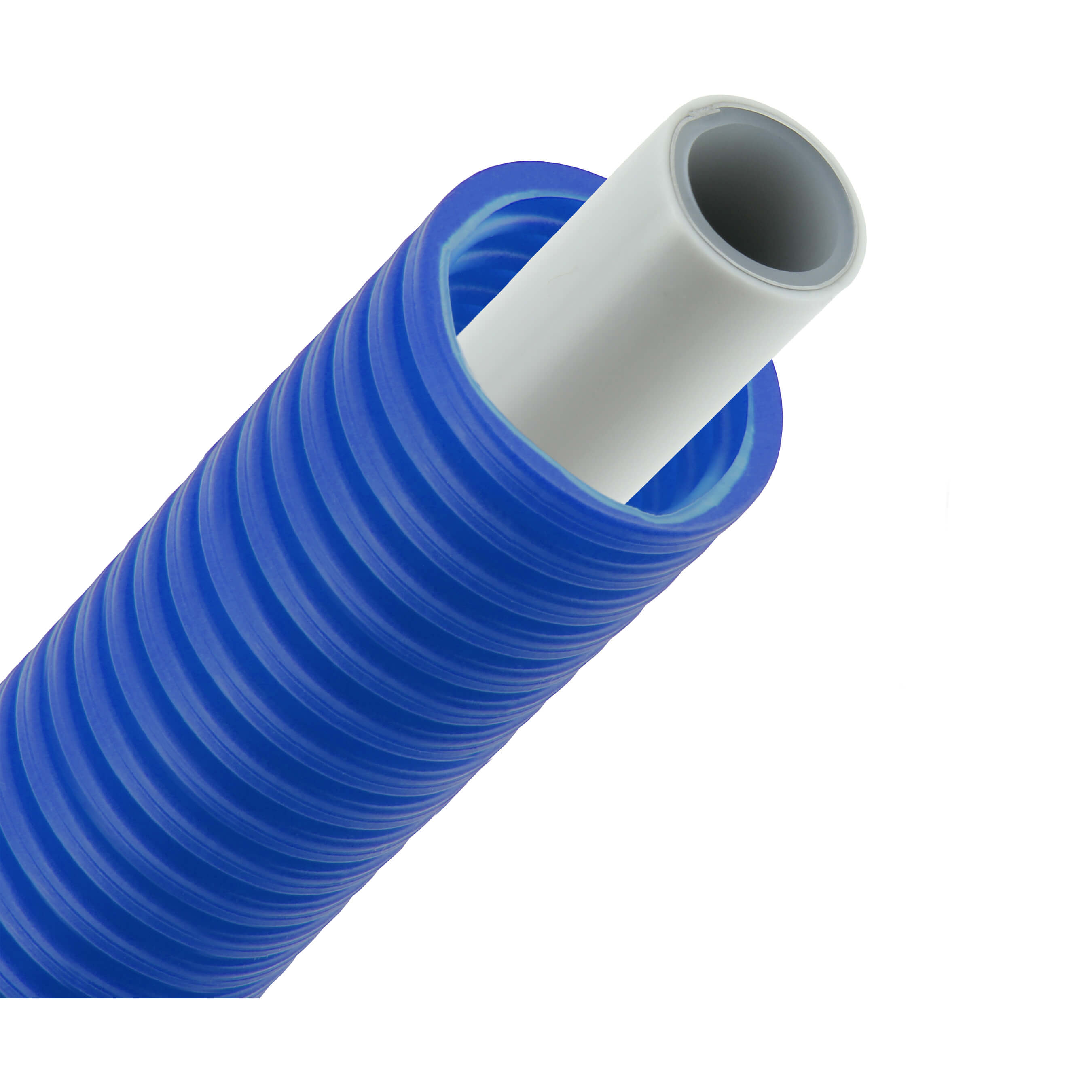

Multi-layered pipe, smooth
Code
EC010225Version
Group
Pipes (EG015530)Release
ETIM-8.0
Features
01 | Material inner layer EF023863 - Alphanumeric | |
02 | Quality class inner layer EF020756 - Alphanumeric | |
03 | Material intermediate layer EF023864 - Alphanumeric | |
04 | Quality class intermediate layer EF020757 - Alphanumeric | |
05 | Material outer layer EF023865 - Alphanumeric | |
06 | Quality class outer layer EF020758 - Alphanumeric | |
07 | Number of layers EF002467 - Numeric | |
08 | Glass-fibre reinforced EF001210 - Logical | |
09 | Diffusion-proof EF022955 - Logical | |
10 | Nominal diameter EF023191 - Alphanumeric | |
11 | Outer pipe diameter (mm) EF006272 - Numeric | |
12 | Wall thickness (mm) EF000229 - Numeric | |
13 | Thickness intermediate layer (mm) EF014928 - Numeric | |
14 | System specific EF025253 - Logical | |
15 | Medium temperature (continuous) (°C) EF023182 - Range | |
16 | Max. medium temperature (momentarily) (°C) EF011889 - Numeric | |
17 | Max. operating pressure at 20 °C (bar) EF023116 - Numeric | |
18 | Max. operating pressure at max. medium temperature (bar) EF014099 - Numeric | |
19 | Wall roughness (mm) EF022458 - Numeric | |
20 | Expansion coefficient (mm/(m⋅K)) EF020383 - Numeric | |
21 | Flexible EF000083 - Logical | |
22 | Suitable for surface mounting EF007793 - Logical | |
23 | Min. bending radius (mm) EF020382 - Numeric | |
24 | Min. bending radius without tools (mm) EF014081 - Numeric | |
25 | Pipe colour EF020430 - Alphanumeric | |
26 | With mantle pipe EF020428 - Logical | |
27 | Outer diameter mantle pipe (mm) EF020429 - Numeric | |
28 | With heating cable EF011886 - Logical | |
29 | Colour outer sheath EF001618 - Alphanumeric | |
30 | With thermal insulation EF023821 - Logical | |
31 | Shape of insulation EF014082 - Alphanumeric | |
32 | Thickness of thermal insulation (mm) EF020759 - Numeric | |
33 | Lambda value (W/(m⋅K)) EF011752 - Numeric | |
34 | Colour of thermal insulation EF020760 - Alphanumeric | |
35 | Outer diameter thermal insulation (mm) EF011751 - Numeric | |
36 | Outer width rectangular insulation (mm) EF014109 - Numeric | |
37 | Outer height rectangular insulation (mm) EF014375 - Numeric | |
38 | Capped EF020028 - Logical | |
39 | UV resistant EF000024 - Logical | |
40 | Water content (l/m) EF002276 - Numeric | |
41 | DVGW quality mark EFDE0002 - Logical | |
42 | DIN-CERTCO certificate EFDE0006 - Logical | |
43 | With approval for TÜV EFDE0031 - Logical | |
44 | Type approval according to BBR/EKS EFSE0002 - Logical |
Synonyms
Multi-layered pipe, smooth
