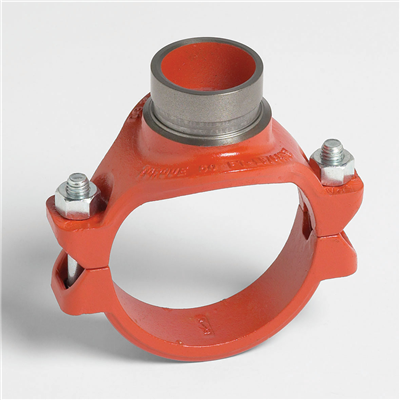

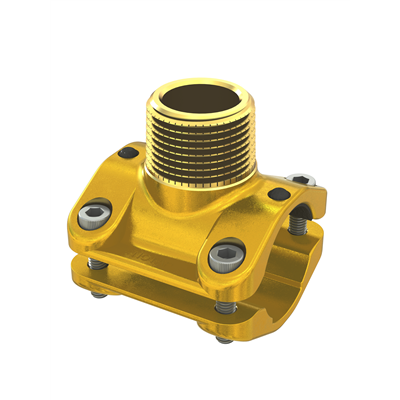

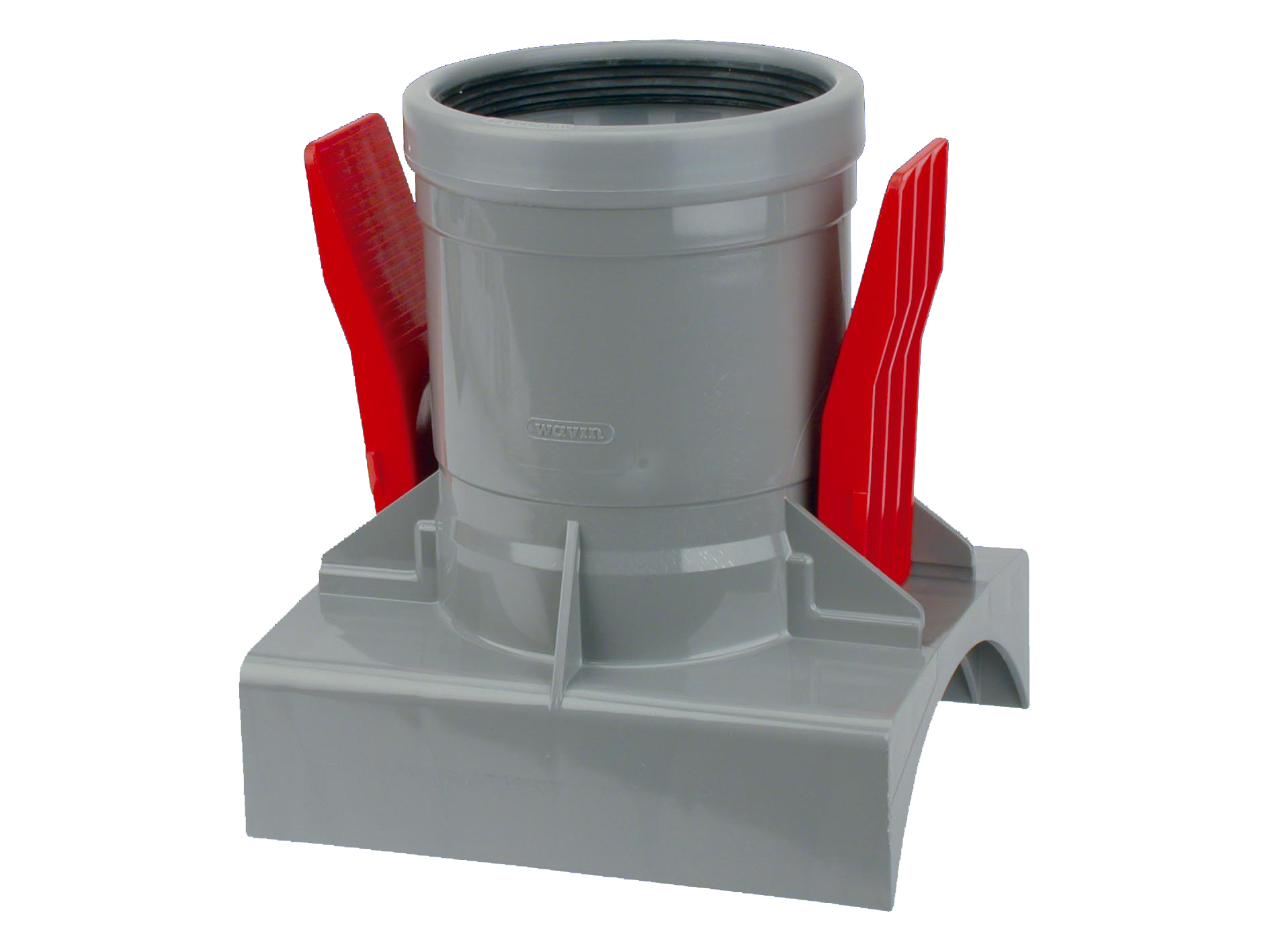

    Broaching saddle

    Code

    EC011014

    Version

    4

    Group

    Fittings, flanges and connectors (EG015540)

    Release

    ETIM-7.0
    nl 2BA se RSK be InstallData fi Sahkonumerot
    Features

    01

    Material

    EF002169 - Alphanumeric

    02

    Material quality

    EF001257 - Alphanumeric

    03

    Material inlay

    EF020045 - Alphanumeric

    04

    Surface protection

    EF000139 - Alphanumeric

    05

    Suitable for pipe diameter

    EF022706 - Alphanumeric

    06

    Suitable for outer pipe diameter (mm)

    EF023550 - Numeric

    07

    Mounted on pipe

    EF023858 - Alphanumeric

    08

    Undrilled

    EF022106 - Logical

    09

    With cutter

    EF022630 - Logical

    10

    Nominal diameter

    EF023191 - Alphanumeric

    11

    Outer pipe diameter (mm)

    EF006272 - Numeric

    12

    Connection

    EF000443 - Alphanumeric

    13

    KIWA certified

    EF020075 - Logical

    14

    Gastec QA

    EF020074 - Logical

    15

    Permitted by NCP

    EF020076 - Logical

    16

    FM quality mark

    EF021905 - Logical

    17

    UL quality mark

    EF021907 - Logical

    18

    ULC quality mark

    EF021908 - Logical

    19

    VdS quality mark

    EF021906 - Logical

    20

    LPCB quality mark

    EF021909 - Logical

    21

    Max. operating pressure at 20 °C (bar)

    EF023116 - Numeric

    22

    Number of scales

    EF021733 - Numeric

    23

    Width (mm)

    EF000008 - Numeric

    24

    Length of connection 1 (mm)

    EF020151 - Numeric

    25

    Working length connection 1 (mm)

    EF020153 - Numeric

    26

    Length of connection 2 (mm)

    EF020152 - Numeric

    27

    Working length connection 2 (mm)

    EF020154 - Numeric

    28

    Length of connection 3 (mm)

    EF020159 - Numeric

    29

    Working length connection 3 (mm)

    EF020160 - Numeric

    30

    High tensile strength

    EF023873 - Logical

    31

    Zeta value

    EF020002 - Numeric

    32

    Min. medium temperature (continuous) (°C)

    EF020077 - Numeric

    33

    Max. medium temperature (continuous) (°C)

    EF020023 - Numeric
    Synonyms

    Broaching saddle

    Groove coupling with outlet

    Weft pressure connection
