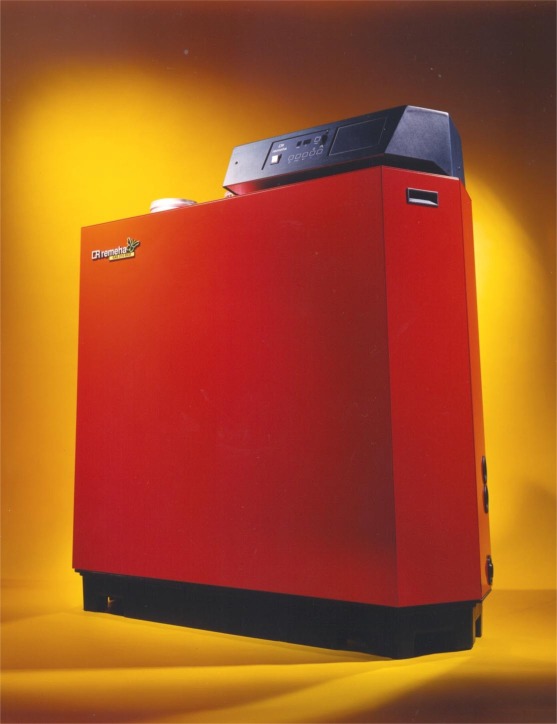

    Standing boiler with integrated burner

    Code

    EC011397

    Version

    7

    Group

    Boilers, heaters and heat pumps (EG020049)

    Release

    DYNAMIC, ETIM-10.0
    nl 2BA se RSK be InstallData fi Sahkonumerot
    Features

    01

    Material heat exchanger

    EF020003 - Alphanumeric

    02

    Closed version

    EF005870 - Logical

    03

    Operation as open model (air supply) possible

    EF023876 - Logical

    04

    Condensing

    EF022520 - Logical

    05

    Boiler system

    EF020081 - Alphanumeric

    06

    Nominal power, 80-60 °C (kW)

    EF020447 - Numeric

    07

    Nominal power, 50-30 °C (kW)

    EF023877 - Numeric

    08

    Nominal load (kW)

    EF018616 - Range

    09

    Heating capacity adjustable

    EF020006 - Logical

    10

    Electronic ignition

    EF021490 - Logical

    11

    Medium

    EF022463 - Alphanumeric

    12

    Suitable for low-calorific natural gas

    EF016810 - Alphanumeric

    13

    Suitable for high-calorific natural gas

    EF016811 - Alphanumeric

    14

    Suitable for propane

    EF016812 - Alphanumeric

    15

    Suitable for butane

    EF016813 - Alphanumeric

    16

    Suitable for methane

    EF016814 - Alphanumeric

    17

    Suitable for liquefied petroleum gas (LPG)

    EF016815 - Alphanumeric

    18

    Suitable for hydrogen

    EF016823 - Alphanumeric

    19

    Max. percentage of hydrogen blending with natural gas (%)

    EF016800 - Numeric

    20

    Suitable for domestic fuel oil (HBO I)

    EF017595 - Alphanumeric

    21

    Suitable for domestic fuel oil (HBO II)

    EF017596 - Alphanumeric

    22

    Supplied in assembled form

    EF020082 - Logical

    23

    Control signal on/off

    EF023847 - Logical

    24

    Control signal 0-10 V

    EF023849 - Logical

    25

    Control signal high/low

    EF023848 - Logical

    26

    Control signal OpenTherm

    EF023850 - Logical

    27

    Burner controller high/low

    EF022183 - Logical

    28

    Modulating burner control

    EF022184 - Logical

    29

    Max. supply temperature (operating temperature) (°C)

    EF020448 - Numeric

    30

    Min. return temperature (°C)

    EF020089 - Numeric

    31

    Operating pressure (bar)

    EF025498 - Range

    32

    Efficiency (%)

    EF022931 - Numeric

    33

    Gas pre-pressure (mbar)

    EF018617 - Range

    34

    Water-side resistance at dT 20 °C (kPa)

    EF020098 - Numeric

    35

    Voltage rating (V)

    EF003977 - Range

    36

    Number of phases

    EF000351 - Numeric

    37

    Frequency

    EF005455 - Alphanumeric

    38

    Built-in filling/drain tap

    EF020450 - Logical

    39

    Built-in pump circuit

    EF020035 - Logical

    40

    Built-in draught limiting device

    EF020008 - Logical

    41

    With built-in circulation pump

    EF020094 - Logical

    42

    Built-in pressure gauge

    EF022475 - Logical

    43

    Built-in weather-dependent controller

    EF020096 - Logical

    44

    Built-in expansion vessel

    EF020097 - Logical

    45

    Built-in pressure relief valve

    EF020451 - Logical

    46

    Height (mm)

    EF000040 - Numeric

    47

    Width (mm)

    EF000008 - Numeric

    48

    Depth (mm)

    EF000049 - Numeric

    49

    Connection supply

    EF002286 - Alphanumeric

    50

    Nominal diameter of supply

    EF023886 - Alphanumeric

    51

    Outer pipe diameter supply (mm)

    EF020469 - Numeric

    52

    Connection return

    EF002287 - Alphanumeric

    53

    Nominal diameter return

    EF023887 - Alphanumeric

    54

    Outer pipe diameter return (mm)

    EF020475 - Numeric

    55

    Fuel connection

    EF020481 - Alphanumeric

    56

    Nominal diameter fuel

    EF023888 - Alphanumeric

    57

    Outer pipe diameter fuel (mm)

    EF020482 - Numeric

    58

    Connection, air supply

    EF020488 - Alphanumeric

    59

    Nominal duct width, air supply (mm)

    EF020489 - Numeric

    60

    Connection, flue

    EF020494 - Alphanumeric

    61

    Nominal duct diameter, flue (mm)

    EF021654 - Numeric

    62

    Condensate connection

    EF020510 - Alphanumeric

    63

    Nominal diameter condensate

    EF023927 - Alphanumeric

    64

    Outer pipe diameter condensate (mm)

    EF020511 - Numeric

    65

    Oil pressure (mbar)

    EF015358 - Range

    66

    Flame protection device

    EF020354 - Alphanumeric

    67

    Oil preheater

    EF021384 - Logical

    68

    Seasonal space heating energy efficiency class according to 811/2013/EU

    EF016994 - Alphanumeric

    69

    ηs, h (seasonal space heating energy efficiency) (%)

    EF019247 - Numeric

    70

    Useful heat emission at nom. heat emission, operation at high temperature (P4) (kW)

    EF010910 - Numeric

    71

    Useful efficiency at nominal heat emission, operation at high temperature (n4) (%)

    EF010911 - Numeric

    72

    Supplementary electricity consumption at full load (ELmax) (kW)

    EF010897 - Numeric

    73

    Supplementary electricity consumption in standby-mode (Psb) (kW)

    EF010912 - Numeric

    74

    Standby heat loss (Pstby) (kW)

    EF010913 - Numeric

    75

    Gas quality mark HR

    EFNL0009 - Logical

    76

    Gas quality mark NZ

    EFNL0010 - Logical
    Synonyms

    Standing boiler with integrated burner
