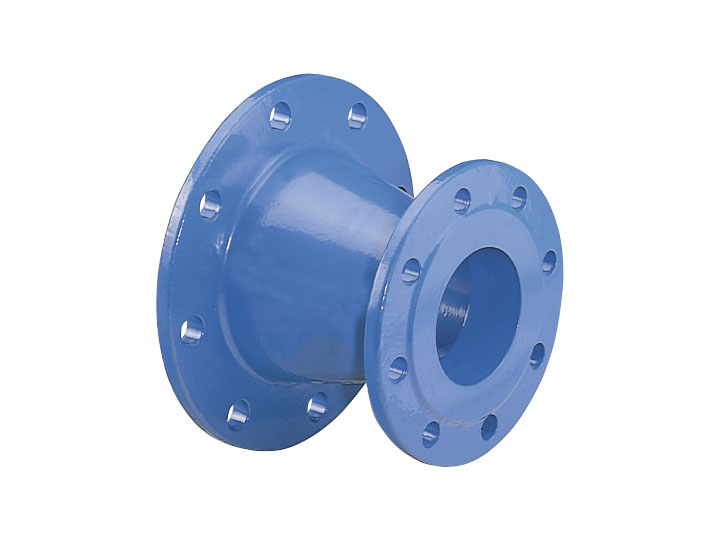

Flange reduction
Code
MC000015Version
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
02 | Reducing EF022617 - Logical |
Features port 1
03 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
05 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
07 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
09 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
11 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
13 | DN1 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
15 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
17 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
19 | h1-1 | Height flange (mm) EF010695 - Numeric | |
21 | k1 | Pitch circle (mm) EF021643 - Numeric | |
23 | n1 | Number of bolt holes EF021779 - Numeric | |
25 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
27 | Connection 1 EF000321 - Alphanumeric |
Features port 2
04 | a2 | Angle to first bolt hole (°) EF010524 - Numeric | |
06 | b2 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
08 | D2 | Outer diameter of flange (mm) EF021531 - Numeric | |
10 | d2-2 | Diameter bolt hole (mm) EF021780 - Numeric | |
12 | d4-2 | Diameter sealing edge (mm) EF010527 - Numeric | |
14 | DN2 | Nominal diameter connection 2 EF020052 - Alphanumeric | |
16 | Do2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
18 | f2 | Thickness sealing edge (mm) EF010528 - Numeric | |
20 | h1-2 | Height flange (mm) EF010695 - Numeric | |
22 | k2 | Pitch circle (mm) EF021643 - Numeric | |
24 | n2 | Number of bolt holes EF021779 - Numeric | |
26 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
28 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Fitting with 2 connections
Flange reduction
