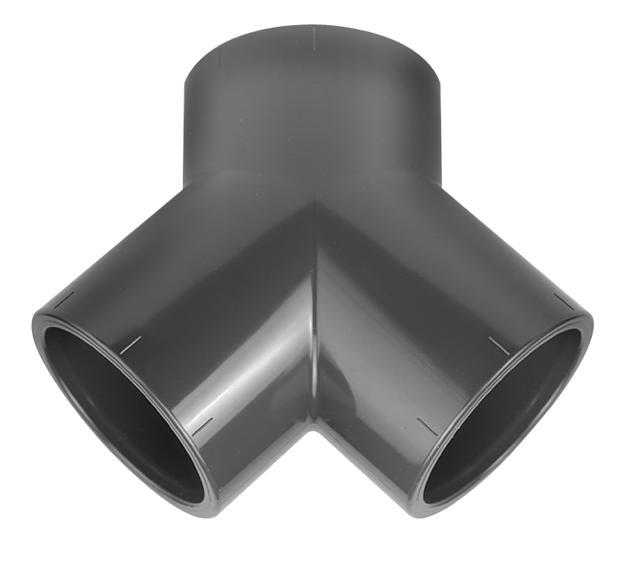

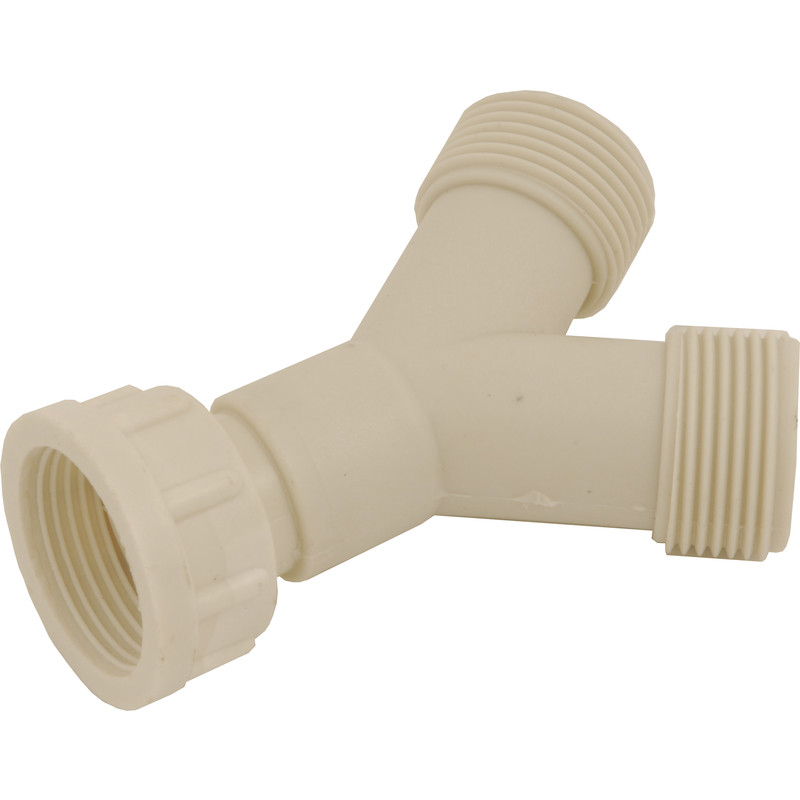

Base conduit Y-piece
Code
MC000016Version
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Model EF000010 - Alphanumeric | ||
02 | a | Angle (°) EF008153 - Numeric |
Features port 1
03 | Connection 1 EF000321 - Alphanumeric | ||
06 | C1 | Height screw gland (mm) EF010040 - Numeric | |
09 | DN1 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
12 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
15 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
18 | g1 | Height screw gland edge (mm) EF010516 - Numeric | |
21 | j1 | Distance to edge (mm) EF010519 - Numeric | |
24 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
27 | SLW1 | Wrench width union nut (mm) EF022259 - Numeric | |
30 | t1 | Rim thickness (mm) EF010038 - Numeric | |
33 | Z1 | Working length connection 1 (mm) EF020153 - Numeric |
Features port 2
04 | Connection 2 EF000322 - Alphanumeric | ||
07 | C2 | Height screw gland (mm) EF010040 - Numeric | |
10 | DN2 | Nominal diameter connection 2 EF020052 - Alphanumeric | |
13 | Do2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
16 | Dr2 | Rim diameter (mm) EF010037 - Numeric | |
19 | g2 | Height screw gland edge (mm) EF010516 - Numeric | |
22 | j2 | Distance to edge (mm) EF010519 - Numeric | |
25 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
28 | SLW2 | Wrench width union nut (mm) EF022259 - Numeric | |
31 | t2 | Rim thickness (mm) EF010038 - Numeric | |
34 | Z2 | Working length connection 2 (mm) EF020154 - Numeric |
Features port 3
05 | Connection 3 EF020065 - Alphanumeric | ||
08 | C3 | Height screw gland (mm) EF010040 - Numeric | |
11 | DN3 | Nominal diameter connection 3 EF020053 - Alphanumeric | |
14 | Do3 | Outer pipe diameter connection 3 (mm) EF020124 - Numeric | |
17 | Dr3 | Rim diameter (mm) EF010037 - Numeric | |
20 | g3 | Height screw gland edge (mm) EF010516 - Numeric | |
23 | j3 | Distance to edge (mm) EF010519 - Numeric | |
26 | L3 | Length of connection 3 (mm) EF020159 - Numeric | |
29 | SLW3 | Wrench width union nut (mm) EF022259 - Numeric | |
32 | t3 | Rim thickness (mm) EF010038 - Numeric | |
35 | Z3 | Working length connection 3 (mm) EF020160 - Numeric |
Related productclasses
Synonyms
Base conduit expansion joint
Base conduit Y-piece
Fitting with 3 connections
