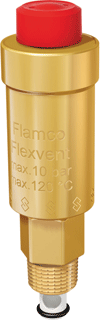

De-aerator, top outlet
Code
MC000034Version
3
Group
Piping - Filtration and separators (MG000022)Release
Drawing
Features
02 | D | Diameter (mm) EF000551 - Numeric | |
07 | H | Height (mm) EF000040 - Numeric | |
08 | H1 | Height float chamber (mm) EF010705 - Numeric | |
10 | Le1 | Distance (mm) EF004346 - Numeric |
Features port 1
01 | C1 | Height screw gland (mm) EF010040 - Numeric | |
03 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
04 | Do1 | Outer pipe diameter (mm) EF006272 - Numeric | |
05 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
06 | g1 | Height screw gland edge (mm) EF010516 - Numeric | |
09 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
11 | P1 | Sleeve length (mm) EF010520 - Numeric | |
12 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
13 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
14 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
15 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
16 | Connection 1 EF000321 - Alphanumeric |
