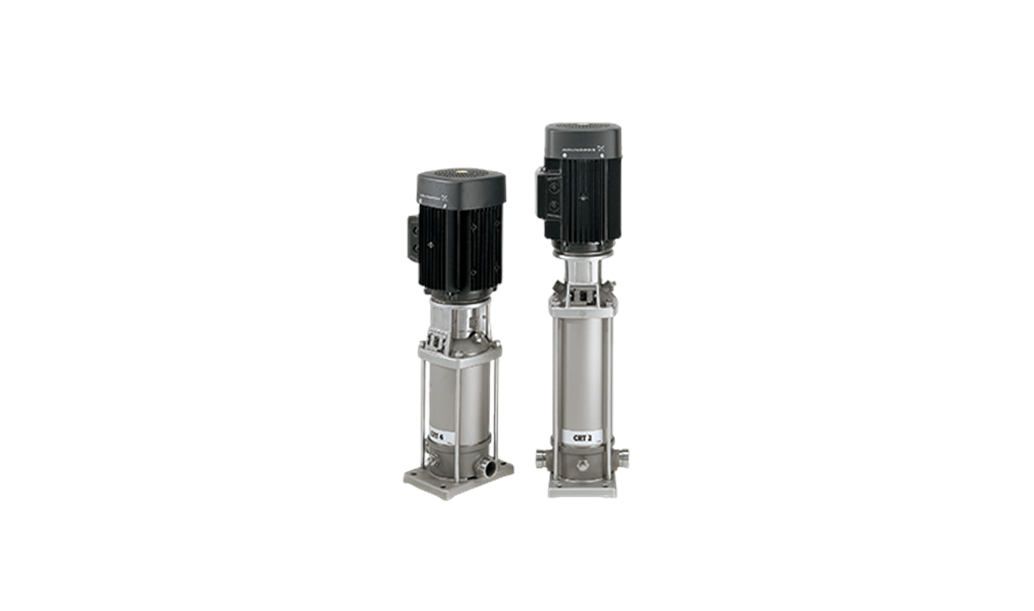

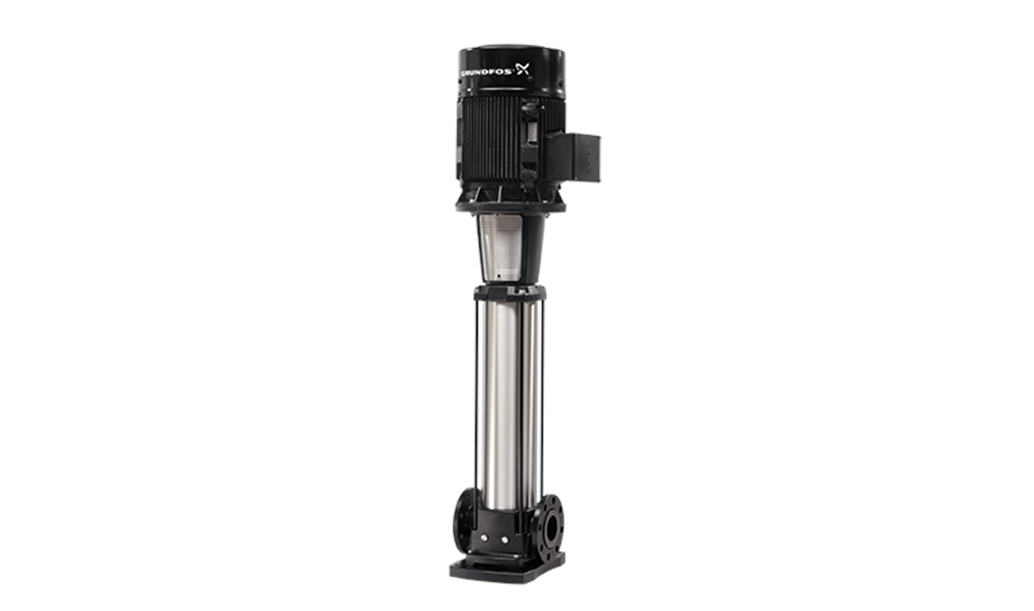

    Multistage centrifugal pump vertical

    Code

    MC000042

    Version

    3

    Group

    Hydronic - Pumps (MG000034)

    Release

    nl 2BA se RSK be InstallData fi Sahkonumerot
    Drawing
    Dimensional drawing
    Features

    01

    Model

    EF000010 - Alphanumeric

    02

    With oval counterflanges

    EF023103 - Logical

    03

    a

    Angle (°)

    EF008153 - Numeric

    16

    DM

    Diameter motor (mm)

    EF010724 - Numeric

    23

    H1

    Pump height (mm)

    EF023086 - Numeric

    24

    H2

    Height to bottom side electrical cabinet (mm)

    EF010725 - Numeric

    25

    H3

    Distance to centre connection (mm)

    EF010708 - Numeric

    26

    H4

    Distance to bottom side motor (mm)

    EF010726 - Numeric

    27

    H5

    Thickness foot (mm)

    EF010727 - Numeric

    28

    H6

    Distance to fastening (mm)

    EF010728 - Numeric

    33

    Le5

    Length electrical cabinet (mm)

    EF010729 - Numeric

    34

    Le7

    Length to top side electrical cabinet (mm)

    EF010730 - Numeric

    39

    Lp

    Position control panel

    EF010733 - Alphanumeric
    Features port 1

    04

    a1

    Angle to first bolt hole (°)

    EF010524 - Numeric

    06

    b1

    Thickness flange (incl. sealing edge) (mm)

    EF010525 - Numeric

    08

    Bo1

    Width oval flange (mm)

    EF010723 - Numeric

    10

    D1

    Outer diameter of flange (mm)

    EF021531 - Numeric

    12

    d2-1

    Diameter bolt hole (mm)

    EF021780 - Numeric

    14

    d4-1

    Diameter sealing edge (mm)

    EF010527 - Numeric

    17

    DN1

    Nominal diameter

    EF023191 - Alphanumeric

    19

    Do1

    Outer pipe diameter connection (mm)

    EF020208 - Numeric

    21

    f1

    Thickness sealing edge (mm)

    EF010528 - Numeric

    29

    k1

    Pitch circle (mm)

    EF021643 - Numeric

    31

    L1

    Length of connection 1 (mm)

    EF020151 - Numeric

    35

    Lh1

    Centre-to-centre holes (mm)

    EF010731 - Numeric

    37

    Lo1

    Length oval flange (mm)

    EF010732 - Numeric

    40

    n1

    Number of bolt holes

    EF021779 - Numeric

    42

    Q1

    Length gusset/thread (mm)

    EF010521 - Numeric

    44

    Z1

    Working length (mm)

    EF006318 - Numeric

    46

    Connection

    EF000443 - Alphanumeric
    Features port 2

    05

    a2

    Angle to first bolt hole (°)

    EF010524 - Numeric

    07

    b2

    Thickness flange (incl. sealing edge) (mm)

    EF010525 - Numeric

    09

    Bo2

    Width oval flange (mm)

    EF010723 - Numeric

    11

    D2

    Outer diameter of flange (mm)

    EF021531 - Numeric

    13

    d2-2

    Diameter bolt hole (mm)

    EF021780 - Numeric

    15

    d4-2

    Diameter sealing edge (mm)

    EF010527 - Numeric

    18

    DN2

    Nominal diameter

    EF023191 - Alphanumeric

    20

    Do2

    Outer pipe diameter connection (mm)

    EF020208 - Numeric

    22

    f2

    Thickness sealing edge (mm)

    EF010528 - Numeric

    30

    k2

    Pitch circle (mm)

    EF021643 - Numeric

    32

    L2

    Length of connection 2 (mm)

    EF020152 - Numeric

    36

    Lh2

    Centre-to-centre holes (mm)

    EF010731 - Numeric

    38

    Lo2

    Length oval flange (mm)

    EF010732 - Numeric

    41

    n2

    Number of bolt holes

    EF021779 - Numeric

    43

    Q2

    Length gusset/thread (mm)

    EF010521 - Numeric

    45

    Z2

    Working length (mm)

    EF006318 - Numeric

    47

    Connection

    EF000443 - Alphanumeric
    Related productclasses

    EC011334/5

    EC011334/6

    EC011334/7

    Synonyms

    Multistage centrifugal pump

    Multistage centrifugal pump vertical
