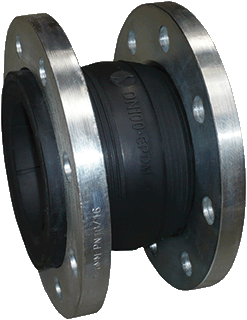

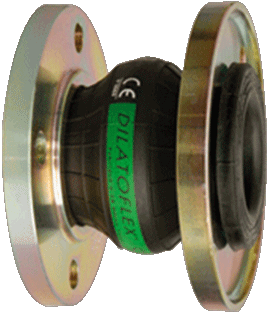

Rubber compensator
Code
MC000047Version
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
Features port 1
01 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
03 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
05 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
07 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
09 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
11 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
13 | Do1 | Outer pipe diameter (mm) EF006272 - Numeric | |
15 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
17 | k1 | Pitch circle (mm) EF021643 - Numeric | |
19 | L1 | Connection length (mm) EF022519 - Numeric | |
21 | n1 | Number of bolt holes EF021779 - Numeric | |
23 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
25 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
27 | Z1 | Working length (mm) EF006318 - Numeric | |
29 | Connection EF000443 - Alphanumeric |
Features port 2
02 | a2 | Angle to first bolt hole (°) EF010524 - Numeric | |
04 | b2 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
06 | D2 | Outer diameter of flange (mm) EF021531 - Numeric | |
08 | d2-2 | Diameter bolt hole (mm) EF021780 - Numeric | |
10 | d4-2 | Diameter sealing edge (mm) EF010527 - Numeric | |
12 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
14 | Do2 | Outer pipe diameter (mm) EF006272 - Numeric | |
16 | f2 | Thickness sealing edge (mm) EF010528 - Numeric | |
18 | k2 | Pitch circle (mm) EF021643 - Numeric | |
20 | L2 | Connection length (mm) EF022519 - Numeric | |
22 | n2 | Number of bolt holes EF021779 - Numeric | |
24 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
26 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
28 | Z2 | Working length (mm) EF006318 - Numeric | |
30 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Rubber compensator
Rubber compensator with flanges
