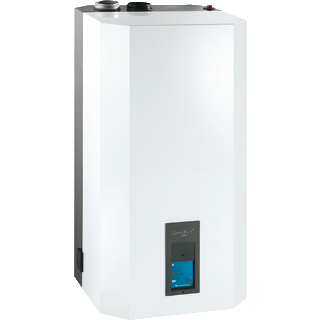

Wall-mounted gas combination boiler
Code
MC000066Version
Group
Hydronic - Heat sources and primary components (MG000026)Release
Drawing
Features
01 | Closed version EF005870 - Logical | ||
02 | Second return connection EF023846 - Logical | ||
03 | D | Depth (mm) EF000049 - Numeric | |
56 | H | Height (mm) EF000040 - Numeric | |
57 | H1 | Height operating element (mm) EF022273 - Numeric | |
70 | LB | Position control panel EF010733 - Alphanumeric | |
107 | W | Width (mm) EF000008 - Numeric |
Features port 1
04 | DN1 | Nominal diameter of supply EF023886 - Alphanumeric | |
16 | Do1 | Outer pipe diameter supply (mm) EF020469 - Numeric | |
28 | dx1 | Length to connection (mm) EF010818 - Numeric | |
42 | dy1 | Width to connection (mm) EF010819 - Numeric | |
58 | L1 | Connection length (mm) EF022519 - Numeric | |
71 | P1 | Sleeve length (mm) EF010520 - Numeric | |
83 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
95 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
108 | Connection supply EF002286 - Alphanumeric |
Features port 2
05 | DN2 | Nominal diameter return EF023887 - Alphanumeric | |
17 | Do2 | Outer pipe diameter return (mm) EF020475 - Numeric | |
29 | dx2 | Length to connection (mm) EF010818 - Numeric | |
43 | dy2 | Width to connection (mm) EF010819 - Numeric | |
59 | L2 | Connection length (mm) EF022519 - Numeric | |
72 | P2 | Sleeve length (mm) EF010520 - Numeric | |
84 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
96 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
109 | Connection return EF002287 - Alphanumeric |
Features port 3
06 | DN3 | Nominal diameter cold tap water EF020013 - Alphanumeric | |
18 | Do3 | Outer pipe diameter cold tap water (mm) EF020499 - Numeric | |
30 | dx3 | Length to connection (mm) EF010818 - Numeric | |
44 | dy3 | Width to connection (mm) EF010819 - Numeric | |
60 | L3 | Connection length (mm) EF022519 - Numeric | |
73 | P3 | Sleeve length (mm) EF010520 - Numeric | |
85 | Q3 | Length gusset/thread (mm) EF010521 - Numeric | |
97 | s3 | Wall thickness connection (mm) EF010546 - Numeric | |
110 | Cold tap water connection EF021386 - Alphanumeric |
Features port 4
07 | DN4 | Nominal diameter hot tap water EF010896 - Alphanumeric | |
19 | Do4 | Outer pipe diameter hot tap water (mm) EF020504 - Numeric | |
31 | dx4 | Length to connection (mm) EF010818 - Numeric | |
45 | dy4 | Width to connection (mm) EF010819 - Numeric | |
61 | L4 | Connection length (mm) EF022519 - Numeric | |
74 | P4 | Sleeve length (mm) EF010520 - Numeric | |
86 | Q4 | Length gusset/thread (mm) EF010521 - Numeric | |
98 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
111 | Hot tap water connection EF021387 - Alphanumeric |
Features port 5
08 | DN5 | Nominal diameter fuel EF023888 - Alphanumeric | |
20 | Do5 | Outer pipe diameter fuel (mm) EF020482 - Numeric | |
32 | dx5 | Length to connection (mm) EF010818 - Numeric | |
46 | dy5 | Width to connection (mm) EF010819 - Numeric | |
62 | L5 | Connection length (mm) EF022519 - Numeric | |
75 | P5 | Sleeve length (mm) EF010520 - Numeric | |
87 | Q5 | Length gusset/thread (mm) EF010521 - Numeric | |
99 | s5 | Wall thickness connection (mm) EF010546 - Numeric | |
112 | Fuel connection EF020481 - Alphanumeric |
Features port 6
09 | DN6 | Nominal diameter condensate EF023927 - Alphanumeric | |
21 | Do6 | Outer pipe diameter condensate (mm) EF020511 - Numeric | |
33 | dx6 | Length to connection (mm) EF010818 - Numeric | |
47 | dy6 | Width to connection (mm) EF010819 - Numeric | |
63 | L6 | Connection length (mm) EF022519 - Numeric | |
76 | P6 | Sleeve length (mm) EF010520 - Numeric | |
88 | Q6 | Length gusset/thread (mm) EF010521 - Numeric | |
100 | s6 | Wall thickness connection (mm) EF010546 - Numeric | |
113 | Condensate connection EF020510 - Alphanumeric |
Features port 7
10 | DN7 | Nominal diameter expansion connection EF022359 - Alphanumeric | |
22 | Do7 | Outer pipe diameter, expansion connection (mm) EF022360 - Numeric | |
34 | dx7 | Length to connection (mm) EF010818 - Numeric | |
48 | dy7 | Width to connection (mm) EF010819 - Numeric | |
64 | L7 | Connection length (mm) EF022519 - Numeric | |
77 | P7 | Sleeve length (mm) EF010520 - Numeric | |
89 | Q7 | Length gusset/thread (mm) EF010521 - Numeric | |
101 | s7 | Wall thickness connection (mm) EF010546 - Numeric | |
114 | Expansion connection EF025606 - Alphanumeric |
Features port 8
11 | DN8 | Nominal diameter circulation pipe EF023930 - Alphanumeric | |
23 | Do8 | Outer pipe diameter circulation pipe (mm) EF021388 - Numeric | |
35 | dx8 | Length to connection (mm) EF010818 - Numeric | |
49 | dy8 | Width to connection (mm) EF010819 - Numeric | |
65 | L8 | Connection length (mm) EF022519 - Numeric | |
78 | P8 | Sleeve length (mm) EF010520 - Numeric | |
90 | Q8 | Length gusset/thread (mm) EF010521 - Numeric | |
102 | s8 | Wall thickness connection (mm) EF010546 - Numeric | |
115 | Circulation pipe connection EF021389 - Alphanumeric |
Features port 9
12 | DN9 | Nominal diameter EF023191 - Alphanumeric | |
24 | Do9 | Outer pipe diameter (mm) EF006272 - Numeric | |
36 | dx9 | Length to connection (mm) EF010818 - Numeric | |
50 | dy9 | Width to connection (mm) EF010819 - Numeric | |
66 | L9 | Connection length (mm) EF022519 - Numeric | |
79 | P9 | Sleeve length (mm) EF010520 - Numeric | |
91 | Q9 | Length gusset/thread (mm) EF010521 - Numeric | |
103 | s9 | Wall thickness connection (mm) EF010546 - Numeric | |
116 | Connection EF000443 - Alphanumeric |
Features port 10
13 | DN10 | Nominal duct width, air supply (mm) EF020489 - Numeric | |
25 | Do10 | Outer pipe diameter (mm) EF006272 - Numeric | |
37 | dx10 | Length to connection (mm) EF010818 - Numeric | |
51 | dy10 | Width to connection (mm) EF010819 - Numeric | |
67 | L10 | Connection length (mm) EF022519 - Numeric | |
80 | P10 | Sleeve length (mm) EF010520 - Numeric | |
92 | Q10 | Length gusset/thread (mm) EF010521 - Numeric | |
104 | s10 | Wall thickness connection (mm) EF010546 - Numeric | |
117 | Air supply connection EF020488 - Alphanumeric |
Features port 11
14 | DN11 | Nominal duct diameter, flue (mm) EF021654 - Numeric | |
26 | Do11 | Outer pipe diameter (mm) EF006272 - Numeric | |
38 | dx11 | Length to connection (mm) EF010818 - Numeric | |
52 | dy11 | Width to connection (mm) EF010819 - Numeric | |
68 | L11 | Connection length (mm) EF022519 - Numeric | |
81 | P11 | Sleeve length (mm) EF010520 - Numeric | |
93 | Q11 | Length gusset/thread (mm) EF010521 - Numeric | |
105 | s11 | Wall thickness connection (mm) EF010546 - Numeric | |
118 | Flue gas connection EF020494 - Alphanumeric |
Features port 12
15 | DN12 | Nominal duct width, air supply (mm) EF020489 - Numeric | |
27 | Do12 | Outer pipe diameter (mm) EF006272 - Numeric | |
39 | dx12 | Length to connection (mm) EF010818 - Numeric | |
53 | dy12 | Width to connection (mm) EF010819 - Numeric | |
69 | L12 | Connection length (mm) EF022519 - Numeric | |
82 | P12 | Sleeve length (mm) EF010520 - Numeric | |
94 | Q12 | Length gusset/thread (mm) EF010521 - Numeric | |
106 | s12 | Wall thickness connection (mm) EF010546 - Numeric | |
119 | Air supply connection EF020488 - Alphanumeric |
Features port 13
40 | dx13 | Length to connection (mm) EF010818 - Numeric | |
54 | dy13 | Width to connection (mm) EF010819 - Numeric |
Features port 14
41 | dx14 | Length to connection (mm) EF010818 - Numeric | |
55 | dy14 | Width to connection (mm) EF010819 - Numeric |
Related productclasses
Synonyms
Wall-mounted gas combination boiler
