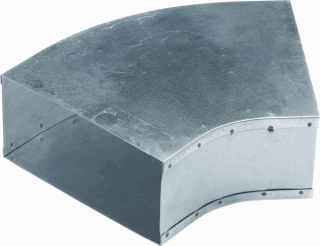

Bocht rechthoekig luchtkanaal
Code
MC000068Version
2
Group
Luchtkanalen (MG000003)Release
Drawing
Features
01 | a | Bochthoek (°) EF005431 - Numeric | |
12 | n | Aantal luchtgeleidingsschoepen EF010830 - Numeric | |
13 | Rh | Straal hartlijn (mm) EF026376 - Numeric | |
14 | Ri | Binnenstraal (mm) EF004793 - Numeric | |
15 | Ro | Buitenstraal (mm) EF010829 - Numeric | |
16 | s | Plaatdikte (mm) EF006112 - Numeric |
Features port 1
02 | Ext1 | Poortverlenging (mm) EF010828 - Numeric | |
04 | FH1 | Hoogte flens (mm) EF010695 - Numeric | |
06 | HN1 | Nom. kanaalhoogte (mm) EF020313 - Numeric | |
08 | IL1 | Insteeklengte (mm) EF020279 - Numeric | |
10 | L1 | Lengte (mm) EF001438 - Numeric | |
17 | WN1 | Nom. kanaalbreedte (mm) EF020312 - Numeric | |
19 | Z1 | Werkende lengte aansluiting 1 (mm) EF020153 - Numeric | |
21 | Aansluiting 1 EF000321 - Alphanumeric |
Features port 2
03 | Ext2 | Poortverlenging (mm) EF010828 - Numeric | |
05 | FH2 | Hoogte flens (mm) EF010695 - Numeric | |
07 | HN2 | Nom. kanaalhoogte (mm) EF020313 - Numeric | |
09 | IL2 | Insteeklengte (mm) EF020279 - Numeric | |
11 | L2 | Lengte (mm) EF001438 - Numeric | |
18 | WN2 | Nom. kanaalbreedte (mm) EF020312 - Numeric | |
20 | Z2 | Werkende lengte aansluiting 2 (mm) EF020154 - Numeric | |
22 | Aansluiting 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Bocht instortkanaal
Bocht rechthoekig luchtkanaal
Instortbocht luchtkanaal
