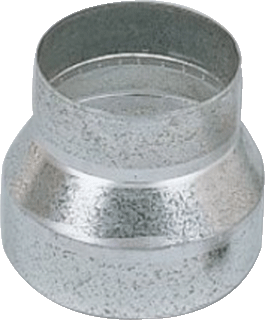

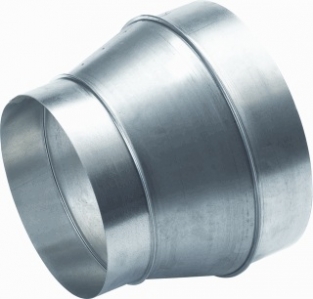

Reducer round air duct
MC000085 / v2
Code
MC000085Version
2
Group
Ventilation - Ducts and duct fittings (MG000003)Release
1 / 2
Features
03 | E | Distance eccentricity (mm) EF010762 - Numeric | |
10 | s | Plate thickness (mm) EF006112 - Numeric |
Features port 1
01 | DN1 | Nominal duct diameter, connection 1 (mm) EF020421 - Numeric | |
04 | IL1 | Insert length (mm) EF020279 - Numeric | |
06 | k1 | Rim thickness (mm) EF010038 - Numeric | |
08 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
11 | Z1 | Working length (mm) EF006318 - Numeric | |
13 | Connection 1 EF000321 - Alphanumeric |
Features port 2
02 | DN2 | Nominal duct diameter, connection 2 (mm) EF020422 - Numeric | |
05 | IL2 | Insert length (mm) EF020279 - Numeric | |
07 | k2 | Rim thickness (mm) EF010038 - Numeric | |
09 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
12 | Z2 | Working length (mm) EF006318 - Numeric | |
14 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Reducer round air duct
Reducer, round air duct
