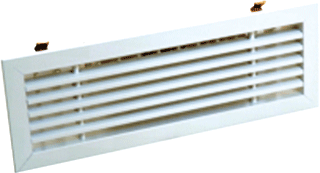

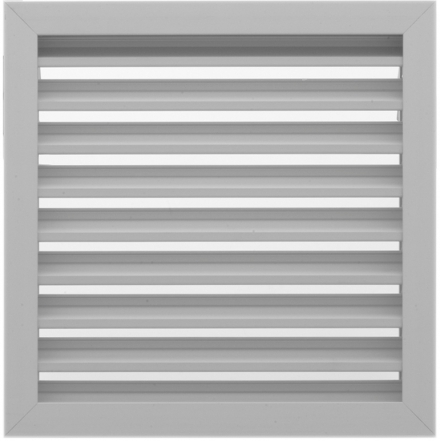

Finned grille (rectangular)
Code
MC000093Version
3
Group
Ventilation - Air terminals (inlet/extract) (MG000004)Release
Drawing
Features
01 | Vertical fins EF022779 - Logical | ||
02 | Double row of ribs EF022780 - Logical | ||
03 | Hf | Front height (mm) EF022768 - Numeric | |
04 | HN | Nominal duct height (mm) EF020313 - Numeric | |
05 | ID | Built-in depth (mm) EF000218 - Numeric | |
06 | Ls | Lamella distance (mm) EF010846 - Numeric | |
07 | n | Number of lamellas EF006538 - Numeric | |
08 | s | Plate thickness (mm) EF006112 - Numeric | |
09 | Wf | Front width (mm) EF022764 - Numeric | |
10 | WN | Nominal duct width (mm) EF020312 - Numeric |
Features port 1
11 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Finned grille
Finned grille (rectangular)
