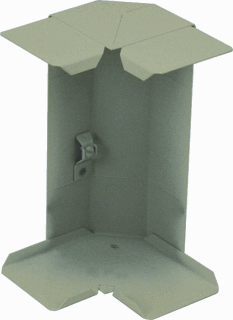

Inner-/outer corner for wall duct
Code
MC000100Version
3
Group
Electrical - Trunking and surface raceways (MG000053)Release
Drawing
Features
01 | a | Angle (°) EF005434 - Range | |
02 | a | Default angle (°) EF015223 - Numeric | |
03 | Ho | Depth (mm) EF000049 - Numeric | |
08 | s | Material thickness (mm) EF000386 - Numeric | |
09 | Wo | Width (mm) EF000008 - Numeric |
Features port 1
04 | IL1 | Insert length (mm) EF020279 - Numeric | |
06 | L1 | Connection length (mm) EF022519 - Numeric |
Features port 2
05 | IL2 | Insert length (mm) EF020279 - Numeric | |
07 | L2 | Connection length (mm) EF022519 - Numeric |
Synonyms
Inner corner
Inner-/outer corner for wall duct
Outer corner
Universal inner-/outer corner for wall duct
