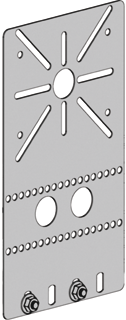

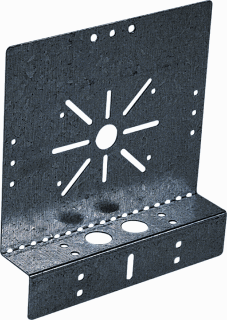

Mounting plate, cable support system, vertical
Code
MC000111Version
2
Group
Electrical - Cable trays and ladders (MG000009)Release
Drawing
Features
01 | Model EF000010 - Alphanumeric | ||
02 | H | Plate height (mm) EF005176 - Numeric | |
03 | H1 | Height 1 (mm) EF010005 - Numeric | |
04 | H2 | Height 2 (mm) EF010006 - Numeric | |
05 | L1 | Length 1 (mm) EF021554 - Numeric | |
06 | L2 | Length 2 (mm) EF021555 - Numeric | |
07 | L3 | Length 3 (mm) EF021750 - Numeric | |
08 | L4 | Length 4 (mm) EF010951 - Numeric | |
09 | s | Material thickness (mm) EF000386 - Numeric | |
10 | W | Plate width (mm) EF005175 - Numeric |
Related productclasses
Synonyms
Adapter plate
Mounting plate for cable support system (vertical)
Mounting plate, cable support system, vertical
