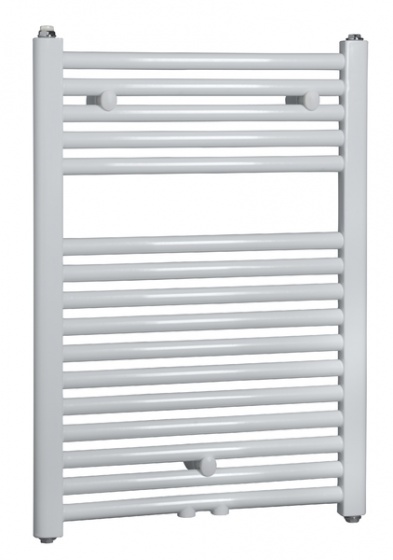

Tube radiator horizontal (round tube, straight)
Code
MC000201Version
Group
Modelling classes to be regrouped (MG000002)Release
Drawing
Features
01 | Shape of radiation tube EF024637 - Alphanumeric | ||
02 | Shape of collector EF024640 - Alphanumeric | ||
03 | Radiant tube EF024641 - Alphanumeric | ||
04 | Radiator design EF024643 - Alphanumeric | ||
05 | Mounting method EF000003 - Alphanumeric | ||
06 | AR | Number of ribs EF000710 - Numeric | |
07 | D | Depth (mm) EF000049 - Numeric | |
08 | D1 | Depth from wall to front side (mm) EF024638 - Range | |
09 | D1 | Default depth from wall to front side (mm) EF015232 - Numeric | |
28 | H | Height (mm) EF000040 - Numeric | |
31 | L | Length (mm) EF001438 - Numeric |
Features port 1
10 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
16 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
22 | Dy1 | Width to connection (mm) EF010819 - Numeric | |
32 | Le1 | Length to connection (mm) EF010818 - Numeric | |
38 | P1 | Sleeve length (mm) EF010520 - Numeric | |
44 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
50 | Connection EF000443 - Alphanumeric |
Features port 4
11 | DN4 | Nominal diameter EF023191 - Alphanumeric | |
17 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
23 | Dy4 | Width to connection (mm) EF010819 - Numeric | |
33 | Le4 | Length to connection (mm) EF010818 - Numeric | |
39 | P4 | Sleeve length (mm) EF010520 - Numeric | |
45 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
51 | Connection EF000443 - Alphanumeric |
Features port 5
12 | DN5 | Nominal diameter EF023191 - Alphanumeric | |
18 | Do5 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
24 | Dy5 | Width to connection (mm) EF010819 - Numeric | |
34 | Le5 | Length to connection (mm) EF010818 - Numeric | |
40 | P5 | Sleeve length (mm) EF010520 - Numeric | |
46 | s5 | Wall thickness connection (mm) EF010546 - Numeric | |
52 | Connection EF000443 - Alphanumeric |
Features port 8
13 | DN8 | Nominal diameter EF023191 - Alphanumeric | |
19 | Do8 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
25 | Dy8 | Width to connection (mm) EF010819 - Numeric | |
35 | Le8 | Length to connection (mm) EF010818 - Numeric | |
41 | P8 | Sleeve length (mm) EF010520 - Numeric | |
47 | s8 | Wall thickness connection (mm) EF010546 - Numeric | |
53 | Connection EF000443 - Alphanumeric |
Features port 20
14 | DN20 | Nominal diameter EF023191 - Alphanumeric | |
20 | Do20 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
26 | Dy20 | Width to connection (mm) EF010819 - Numeric | |
29 | H20 | Height to connection (mm) EF010721 - Numeric | |
36 | Le20 | Length to connection (mm) EF010818 - Numeric | |
42 | P20 | Sleeve length (mm) EF010520 - Numeric | |
48 | s20 | Wall thickness connection (mm) EF010546 - Numeric | |
54 | Connection EF000443 - Alphanumeric |
Features port 30
15 | DN30 | Nominal diameter EF023191 - Alphanumeric | |
21 | Do30 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
27 | Dy30 | Width to connection (mm) EF010819 - Numeric | |
30 | H30 | Height to connection (mm) EF010721 - Numeric | |
37 | Le30 | Length to connection (mm) EF010818 - Numeric | |
43 | P30 | Sleeve length (mm) EF010520 - Numeric | |
49 | s30 | Wall thickness connection (mm) EF010546 - Numeric | |
55 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Tube radiator horizontal (round tube, straight)
