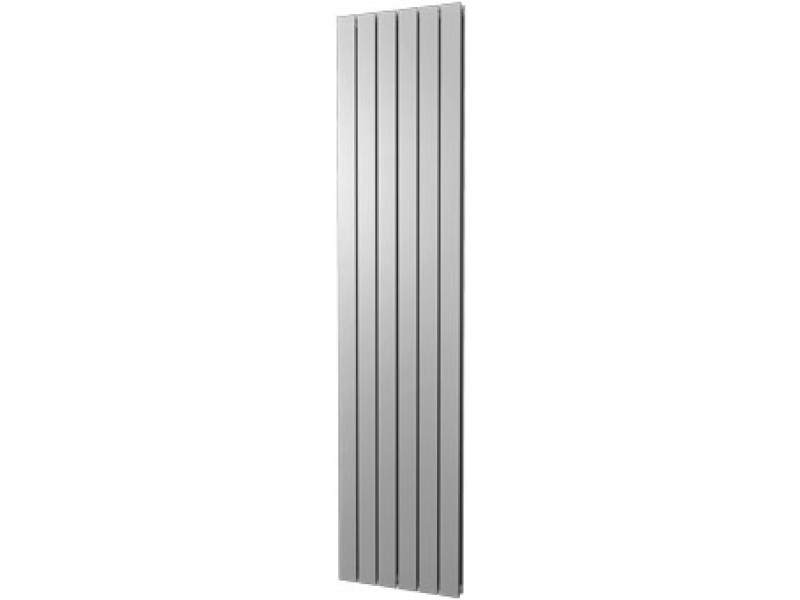

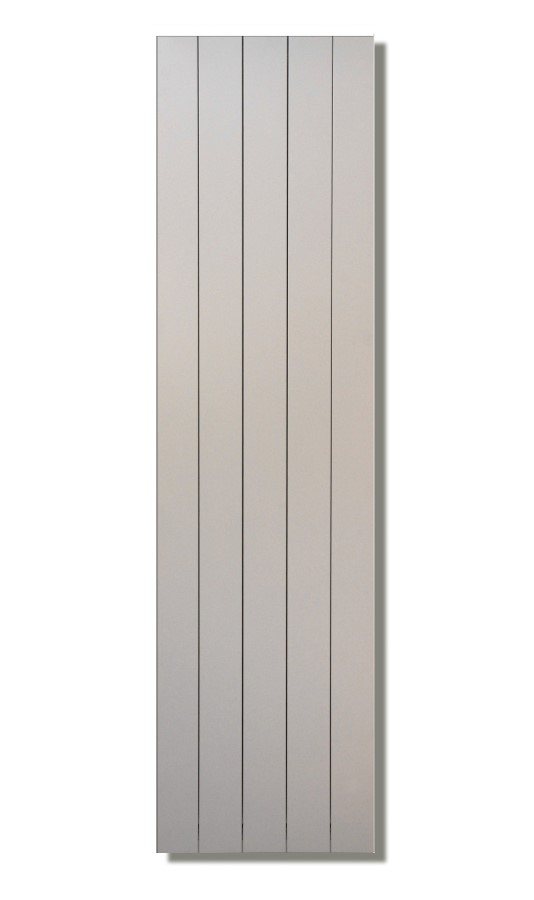

Tube radiator vertical (rectangular tube, straight)
Code
MC000202Version
Group
Modelling classes to be regrouped (MG000002)Release
Drawing
Features
01 | Shape of radiation tube EF024637 - Alphanumeric | ||
02 | Shape of collector EF024640 - Alphanumeric | ||
03 | Radiant tube EF024641 - Alphanumeric | ||
04 | Radiator design EF024643 - Alphanumeric | ||
05 | Mounting method EF000003 - Alphanumeric | ||
06 | AR | Number of ribs EF000710 - Numeric | |
07 | BA | Bracket distance (mm) EF010822 - Numeric | |
08 | D | Depth (mm) EF000049 - Numeric | |
45 | H | Height (mm) EF000040 - Numeric | |
50 | L | Length (mm) EF001438 - Numeric |
Features port 1
09 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
21 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
33 | Dy1 | Width to connection (mm) EF010819 - Numeric | |
51 | Le1 | Length to connection (mm) EF010818 - Numeric | |
59 | P1 | Sleeve length (mm) EF010520 - Numeric | |
71 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
83 | Connection EF000443 - Alphanumeric |
Features port 2
10 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
22 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
34 | Dy2 | Width to connection (mm) EF010819 - Numeric | |
46 | H2 | Height to connection (mm) EF010721 - Numeric | |
60 | P2 | Sleeve length (mm) EF010520 - Numeric | |
72 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
84 | Connection EF000443 - Alphanumeric |
Features port 3
11 | DN3 | Nominal diameter EF023191 - Alphanumeric | |
23 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
35 | Dy3 | Width to connection (mm) EF010819 - Numeric | |
47 | H3 | Height to connection (mm) EF010721 - Numeric | |
61 | P3 | Sleeve length (mm) EF010520 - Numeric | |
73 | s3 | Wall thickness connection (mm) EF010546 - Numeric | |
85 | Connection EF000443 - Alphanumeric |
Features port 4
12 | DN4 | Nominal diameter EF023191 - Alphanumeric | |
24 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
36 | Dy4 | Width to connection (mm) EF010819 - Numeric | |
52 | Le4 | Length to connection (mm) EF010818 - Numeric | |
62 | P4 | Sleeve length (mm) EF010520 - Numeric | |
74 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
86 | Connection EF000443 - Alphanumeric |
Features port 5
13 | DN5 | Nominal diameter EF023191 - Alphanumeric | |
25 | Do5 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
37 | Dy5 | Width to connection (mm) EF010819 - Numeric | |
53 | Le5 | Length to connection (mm) EF010818 - Numeric | |
63 | P5 | Sleeve length (mm) EF010520 - Numeric | |
75 | s5 | Wall thickness connection (mm) EF010546 - Numeric | |
87 | Connection EF000443 - Alphanumeric |
Features port 6
14 | DN6 | Nominal diameter EF023191 - Alphanumeric | |
26 | Do6 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
38 | Dy6 | Width to connection (mm) EF010819 - Numeric | |
48 | H6 | Height to connection (mm) EF010721 - Numeric | |
64 | P6 | Sleeve length (mm) EF010520 - Numeric | |
76 | s6 | Wall thickness connection (mm) EF010546 - Numeric | |
88 | Connection EF000443 - Alphanumeric |
Features port 7
15 | DN7 | Nominal diameter EF023191 - Alphanumeric | |
27 | Do7 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
39 | Dy7 | Width to connection (mm) EF010819 - Numeric | |
49 | H7 | Height to connection (mm) EF010721 - Numeric | |
65 | P7 | Sleeve length (mm) EF010520 - Numeric | |
77 | s7 | Wall thickness connection (mm) EF010546 - Numeric | |
89 | Connection EF000443 - Alphanumeric |
Features port 8
16 | DN8 | Nominal diameter EF023191 - Alphanumeric | |
28 | Do8 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
40 | Dy8 | Width to connection (mm) EF010819 - Numeric | |
54 | Le8 | Length to connection (mm) EF010818 - Numeric | |
66 | P8 | Sleeve length (mm) EF010520 - Numeric | |
78 | s8 | Wall thickness connection (mm) EF010546 - Numeric | |
90 | Connection EF000443 - Alphanumeric |
Features port 20
17 | DN20 | Nominal diameter EF023191 - Alphanumeric | |
29 | Do20 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
41 | Dy20 | Width to connection (mm) EF010819 - Numeric | |
55 | Le20 | Length to connection (mm) EF010818 - Numeric | |
67 | P20 | Sleeve length (mm) EF010520 - Numeric | |
79 | s20 | Wall thickness connection (mm) EF010546 - Numeric | |
91 | Connection EF000443 - Alphanumeric |
Features port 30
18 | DN30 | Nominal diameter EF023191 - Alphanumeric | |
30 | Do30 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
42 | Dy30 | Width to connection (mm) EF010819 - Numeric | |
56 | Le30 | Length to connection (mm) EF010818 - Numeric | |
68 | P30 | Sleeve length (mm) EF010520 - Numeric | |
80 | s30 | Wall thickness connection (mm) EF010546 - Numeric | |
92 | Connection EF000443 - Alphanumeric |
Features port 50
19 | DN50 | Nominal diameter EF023191 - Alphanumeric | |
31 | Do50 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
43 | Dy50 | Width to connection (mm) EF010819 - Numeric | |
57 | Le50 | Length to connection (mm) EF010818 - Numeric | |
69 | P50 | Sleeve length (mm) EF010520 - Numeric | |
81 | s50 | Wall thickness connection (mm) EF010546 - Numeric | |
93 | Connection EF000443 - Alphanumeric |
Features port 60
20 | DN60 | Nominal diameter EF023191 - Alphanumeric | |
32 | Do60 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
44 | Dy60 | Width to connection (mm) EF010819 - Numeric | |
58 | Le60 | Length to connection (mm) EF010818 - Numeric | |
70 | P60 | Sleeve length (mm) EF010520 - Numeric | |
82 | s60 | Wall thickness connection (mm) EF010546 - Numeric | |
94 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Tube radiator vertical (rectangular tube, straight)
