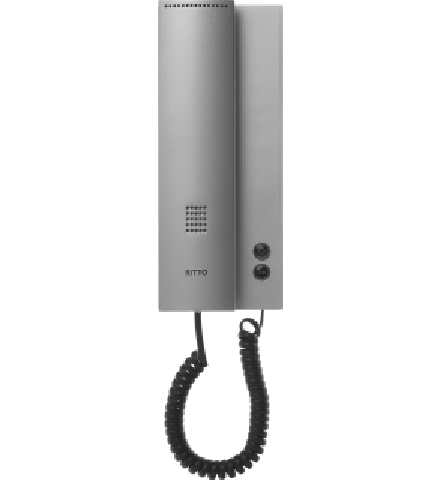

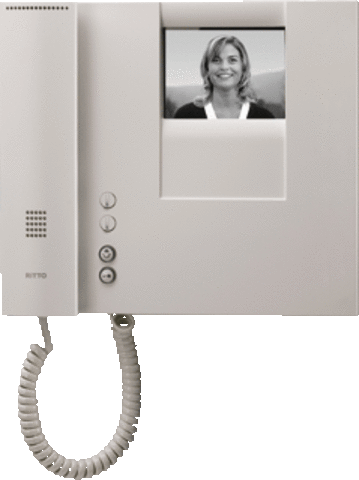

Door-/video intercom

Code

MC000215

Telecom - Entrance/door-communication and intercom (MG000021)

Drawing

Features

01		Mounting method EF000003 - Alphanumeric
02	Di	Built-in depth (mm) EF000218 - Numeric
03	Dp	Phone depth (mm) EF011046 - Numeric
04	H	Height (mm) EF000040 - Numeric
05	H1	Height 1 (mm) EF010005 - Numeric
06	H2	Height 2 (mm) EF010006 - Numeric
07	H3	Height 3 (mm) EF010887 - Numeric
08	H4	Height 4 (mm) EF010998 - Numeric
09	Hb	Height buttons (mm) EF011043 - Numeric
10	Hd	Display height (mm) EF011023 - Numeric
11	Hi	Built-in height (mm) EF000332 - Numeric
12	Hl	Loudspeaker height (mm) EF011044 - Numeric
13	Hp	Phone height (mm) EF011045 - Numeric
14	SH	Surface height (mm) EF010886 - Numeric
15	W	Width (mm) EF000008 - Numeric
16	W1	Width 1 (mm) EF023087 - Numeric
17	W2	Width 2 (mm) EF023088 - Numeric
18	W3	Width 3 (mm) EF010999 - Numeric
19	W4	Width 4 (mm) EF011000 - Numeric
20	Wb	Width buttons (mm) EF011047 - Numeric
21	Wd	Display width (mm) EF011024 - Numeric
22	Wi	Built-in width (mm) EF000846 - Numeric
23	Wl	Loudspeaker width (mm) EF011048 - Numeric
24	Wp	Phone width (mm) EF011049 - Numeric
