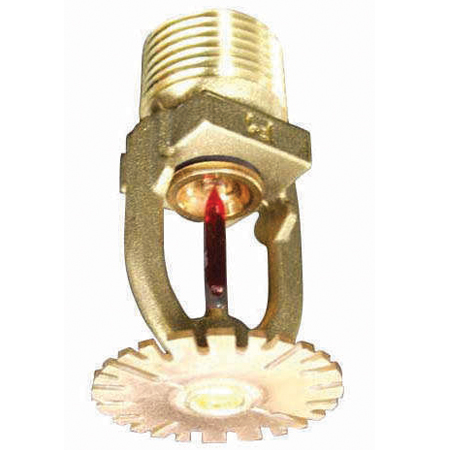

Spray sprinkler (pendent)
Code
MC000233Version
1
Group
Fire and life safety - Fire protection equipment and components (MG000041)Release
Drawing
Features
01 | Position EF020083 - Alphanumeric | ||
02 | Deflector EF020974 - Alphanumeric | ||
05 | H1 | Height sprinkler head (mm) EF011087 - Numeric |
Features port 1
03 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
04 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
06 | L1 | Connection length (mm) EF022519 - Numeric | |
07 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
08 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Spray sprinkler (pendent)
