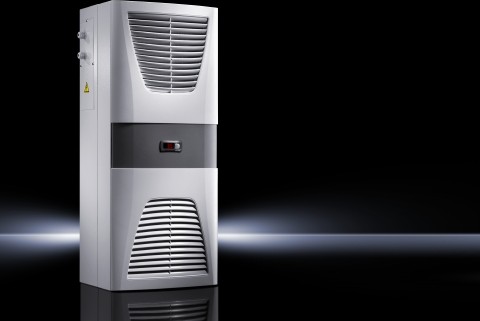

Recooling unit (switchgear cabinet)
Code
MC000259Version
1
Group
Electrical - Enclosures and cabinets (MG000008)Release
Drawing
Features
02 | CA2 | Position electrical connection (mm) EF010979 - Coordinate | |
03 | CA3 | Position control cable (mm) EF011430 - Coordinate | |
04 | CA4 | Position thermostat cable (mm) EF011429 - Coordinate | |
05 | D | Depth (mm) EF000049 - Numeric | |
08 | H | Height (mm) EF000040 - Numeric | |
13 | W | Width (mm) EF000008 - Numeric |
Features port 1
01 | CA1 | Position connection (mm) EF011006 - Coordinate | |
06 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
07 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
09 | P1 | Sleeve length (mm) EF010520 - Numeric | |
10 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
11 | RV1 | Directional vector connection EF011005 - Coordinate | |
12 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
14 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Recooling unit (switchgear cabinet)
