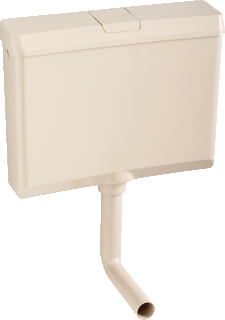

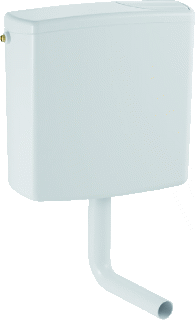

Surface-mounted flushing reservoir
Code
MC000273Version
2
Group
Waste water (MG000044)Release
Drawing
Features
01 | Water connection, left EF020716 - Logical | ||
02 | Water connection, right EF020717 - Logical | ||
05 | D | Depth (mm) EF000049 - Numeric | |
10 | H | Height (mm) EF000040 - Numeric | |
11 | H1 | Height 1 (mm) EF010005 - Numeric | |
12 | H2 | Height to centre suspension (mm) EF011442 - Numeric | |
21 | W | Width (mm) EF000008 - Numeric | |
22 | W1 | Centre-to-centre suspension (mm) EF011481 - Numeric |
Features port 1
03 | CA1 | Position connection (mm) EF011006 - Coordinate | |
06 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
08 | Do1 | Outer pipe diameter connection tap water (mm) EF020819 - Numeric | |
13 | P1 | Sleeve length (mm) EF010520 - Numeric | |
15 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
17 | RV1 | Directional vector connection EF011005 - Coordinate | |
19 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
23 | Tap water connection EF024127 - Alphanumeric |
Features port 2
04 | CA2 | Position connection (mm) EF011006 - Coordinate | |
07 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
09 | Do2 | Outer pipe diameter connection tap water (mm) EF020819 - Numeric | |
14 | P2 | Sleeve length (mm) EF010520 - Numeric | |
16 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
18 | RV2 | Directional vector connection EF011005 - Coordinate | |
20 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
24 | Tap water connection EF024127 - Alphanumeric |
Related productclasses
Synonyms
Surface-mounted flushing reservoir
