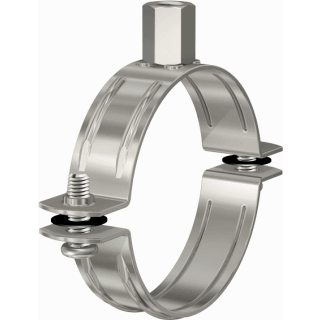

Two-piece bracket round
Code
MC000283Version
2
Group
Supports - Installation support hardware (MG000031)Release
Drawing
Features
01 | Lock facility EF020446 - Alphanumeric | ||
02 | B1 | Width (mm) EF000008 - Numeric | |
03 | Di | Inner diameter (mm) EF000065 - Numeric | |
04 | Li | Length (mm) EF001438 - Numeric | |
05 | s1 | Material thickness 1 (mm) EF011443 - Numeric | |
06 | s2 | Material thickness 2 (mm) EF011444 - Numeric | |
07 | W1 | Width 1 (mm) EF023087 - Numeric | |
08 | W2 | Width 2 (mm) EF023088 - Numeric |
Features port 1
09 | Connection facility EF020239 - Alphanumeric | ||
10 | OD1 | Outer connection size EF016602 - Alphanumeric | |
11 | ID1 | Inner connection size EF016603 - Alphanumeric | |
12 | L1 | Connection length (mm) EF022519 - Numeric | |
13 | Z1 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Cold-bridge-free bracket
One-piece/two-piece bracket round
Two-piece bracket round
