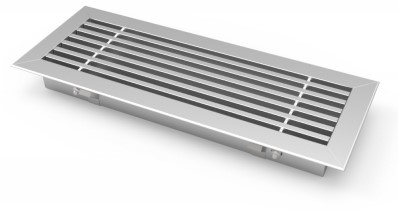

Air grille, rectangular front
Code
MC000403Version
2
Group
Ventilation - Air terminals (inlet/extract) (MG000004)Release
Drawing
Features
01 | Grille front EF022988 - Alphanumeric | ||
06 | Wf | Front width (mm) EF022764 - Numeric | |
07 | Lf | Front length (mm) EF022772 - Numeric | |
08 | D | Built-in depth (mm) EF000218 - Numeric | |
09 | Hf | Front plate height (mm) EF004690 - Numeric | |
10 | s | Material thickness (mm) EF000386 - Numeric |
Features port 1
02 | WN1 | Nominal duct width (mm) EF020312 - Numeric | |
03 | HN1 | Nominal duct height (mm) EF020313 - Numeric | |
04 | W1 | Connection width (mm) EF022562 - Numeric | |
05 | H1 | Connection height (mm) EF022561 - Numeric |
Synonyms
Air grille, rectangular front
Floor air grille, rectangular front
