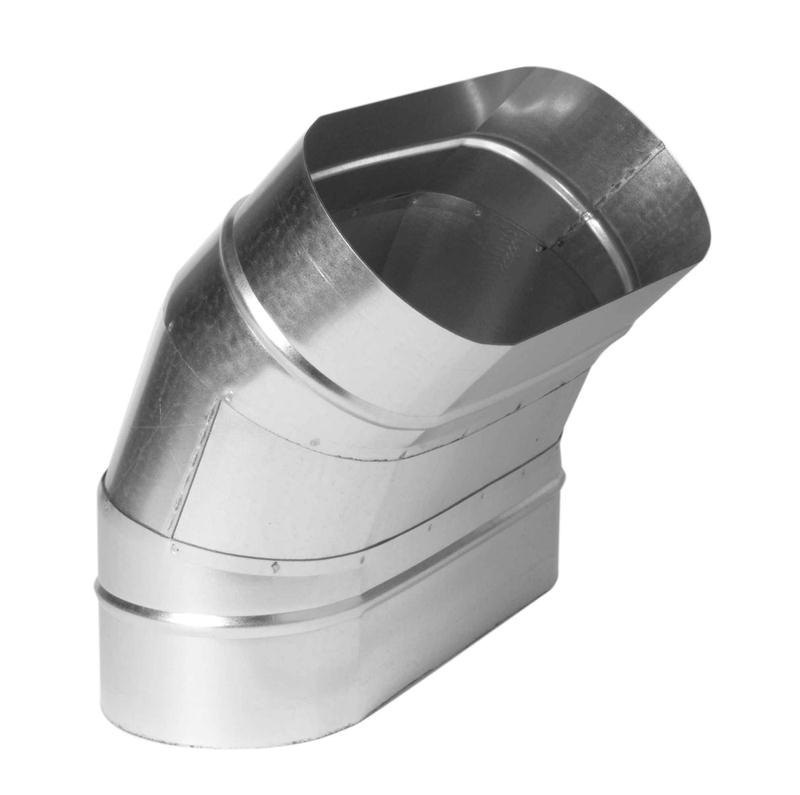

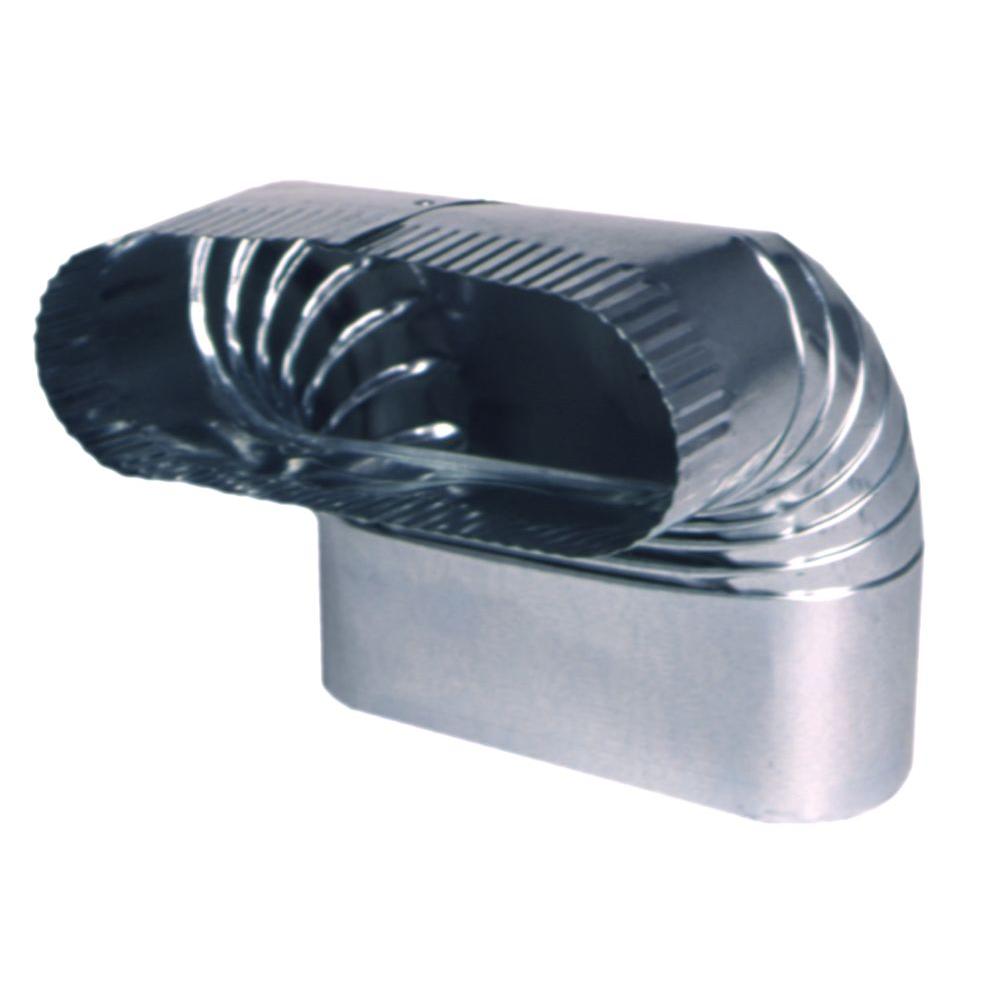

Bend vertical, oval air duct
Code
MC000409Version
1
Group
Ventilation - Ducts and duct fittings (MG000003)Release
Drawing
Features
01 | Model EF000010 - Alphanumeric | ||
02 | Change of direction EF005210 - Alphanumeric | ||
03 | Si | Insulation thickness (mm) EF004810 - Numeric | |
04 | s | Wall thickness duct (mm) EF014016 - Numeric | |
11 | a | Bend angle (°) EF005431 - Numeric | |
12 | Rh | Centre line radius (mm) EF026376 - Numeric | |
13 | HN | Nominal duct height (mm) EF020313 - Numeric | |
14 | WN | Nominal duct width (mm) EF020312 - Numeric |
Features port 1
05 | Connection 1 EF000321 - Alphanumeric | ||
07 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
09 | L1 | Connection length (mm) EF022519 - Numeric | |
15 | FH1 | Height flange (mm) EF010695 - Numeric | |
16 | FW1 | Flange size horizontal (mm) EF008408 - Numeric |
Features port 2
06 | Connection 2 EF000322 - Alphanumeric | ||
08 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
10 | L2 | Connection length (mm) EF022519 - Numeric | |
17 | FH2 | Height flange (mm) EF010695 - Numeric | |
18 | FW2 | Flange size horizontal (mm) EF008408 - Numeric |
Related productclasses
Synonyms
Bend vertical, oval air duct
