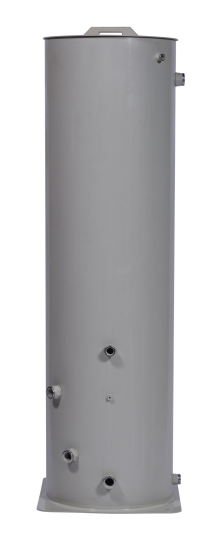

Open expansion vessel (vertical)
Code
MC000416Version
Group
Hydronic - Pressurisation and expansion (MG000033)Release
Drawing
Features
16 | D | Diameter (mm) EF000551 - Numeric | |
27 | FH | Frame height (mm) EF021570 - Numeric | |
28 | H | Height (mm) EF000040 - Numeric | |
29 | L | Foundation plate length (mm) EF023097 - Numeric | |
50 | W | Foundation plate width (mm) EF023098 - Numeric |
Features port 1
01 | Connection, expansion connection EF013513 - Alphanumeric | ||
06 | CA1 | Position connection (mm) EF011006 - Coordinate | |
11 | DV1 | Directional vector connection EF011005 - Coordinate | |
17 | DN1 | Nominal diameter expansion connection EF022359 - Alphanumeric | |
22 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
30 | L1 | Connection length (mm) EF022519 - Numeric | |
35 | P1 | Sleeve length (mm) EF010520 - Numeric | |
40 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
45 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
51 | Z1 | Working length (mm) EF006318 - Numeric |
Features port 2
02 | Connection, expansion connection EF013513 - Alphanumeric | ||
07 | CA2 | Position connection (mm) EF011006 - Coordinate | |
12 | DV2 | Directional vector connection EF011005 - Coordinate | |
18 | DN2 | Nominal diameter expansion connection EF022359 - Alphanumeric | |
23 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
31 | L2 | Connection length (mm) EF022519 - Numeric | |
36 | P2 | Sleeve length (mm) EF010520 - Numeric | |
41 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
46 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
52 | Z2 | Working length (mm) EF006318 - Numeric |
Features port 3
03 | Connection overflow EF013512 - Alphanumeric | ||
08 | CA3 | Position connection (mm) EF011006 - Coordinate | |
13 | DV3 | Directional vector connection EF011005 - Coordinate | |
19 | DN3 | Nominal diameter connection overflow EF013511 - Alphanumeric | |
24 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
32 | L3 | Connection length (mm) EF022519 - Numeric | |
37 | P3 | Sleeve length (mm) EF010520 - Numeric | |
42 | Q3 | Length gusset/thread (mm) EF010521 - Numeric | |
47 | s3 | Wall thickness connection (mm) EF010546 - Numeric | |
53 | Z3 | Working length (mm) EF006318 - Numeric |
Features port 4
04 | Connection, air-release EF013537 - Alphanumeric | ||
09 | CA4 | Position connection (mm) EF011006 - Coordinate | |
14 | DV4 | Directional vector connection EF011005 - Coordinate | |
20 | DN4 | Nominal diameter air-release EF025056 - Alphanumeric | |
25 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
33 | L4 | Connection length (mm) EF022519 - Numeric | |
38 | P4 | Sleeve length (mm) EF010520 - Numeric | |
43 | Q4 | Length gusset/thread (mm) EF010521 - Numeric | |
48 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
54 | Z4 | Working length (mm) EF006318 - Numeric |
Features port 5
05 | Connection, drainage connection EF021391 - Alphanumeric | ||
10 | CA5 | Position connection (mm) EF011006 - Coordinate | |
15 | DV5 | Directional vector connection EF011005 - Coordinate | |
21 | DN5 | Nominal diameter drain connection EF010881 - Alphanumeric | |
26 | Do5 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
34 | L5 | Connection length (mm) EF022519 - Numeric | |
39 | P5 | Sleeve length (mm) EF010520 - Numeric | |
44 | Q5 | Length gusset/thread (mm) EF010521 - Numeric | |
49 | s5 | Wall thickness connection (mm) EF010546 - Numeric | |
55 | Z5 | Working length (mm) EF006318 - Numeric |
Related productclasses
Synonyms
Expansion container
Expansion tank
Open expansion vessel
Open expansion vessel (vertical)
Open expansion vessel, vertical
Pressure-maintaining container
Pressure-maintaining tank
