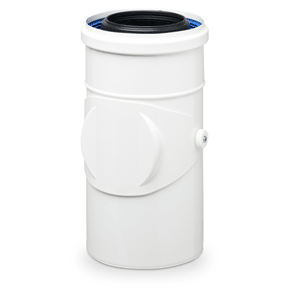

Concentric flue gas/air supply inspection piece, straight
Code
MC000431Version
2
Group
Hydronic - Flue gas and combustion air systems (MG000024)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
08 | H1 | Centre distance (mm) EF021835 - Numeric | |
09 | H2 | Height inspection opening (mm) EF022446 - Numeric | |
10 | H3 | Height of inspection opening (duct top) (mm) EF024259 - Numeric | |
13 | r1 | Radius (mm) EF020621 - Numeric | |
14 | W | Width inspection opening (mm) EF022445 - Numeric |
Features port 1
02 | Connection EF000443 - Alphanumeric | ||
04 | Dd1 | Diameter inner pipe (mm) EF025217 - Numeric | |
05 | Dd1-2 | Diameter outer pipe (mm) EF016435 - Numeric | |
11 | L1 | Connection length (mm) EF022519 - Numeric |
Features port 2
03 | Connection EF000443 - Alphanumeric | ||
06 | Dd2 | Diameter inner pipe (mm) EF025217 - Numeric | |
07 | Dd2-2 | Diameter outer pipe (mm) EF016435 - Numeric | |
12 | L2 | Connection length (mm) EF022519 - Numeric | |
15 | Z2 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Concentric flue gas/air supply inspection piece, straight
