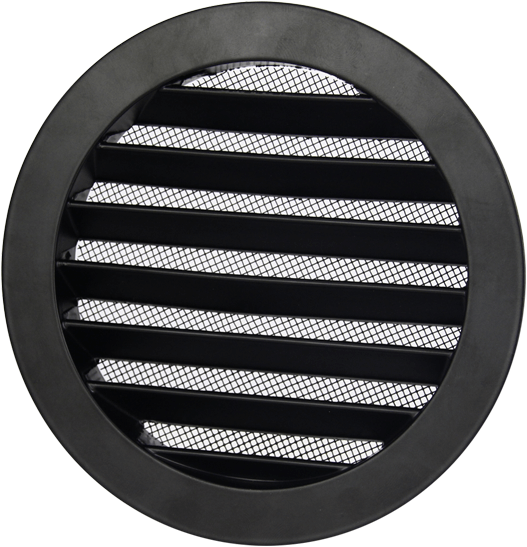

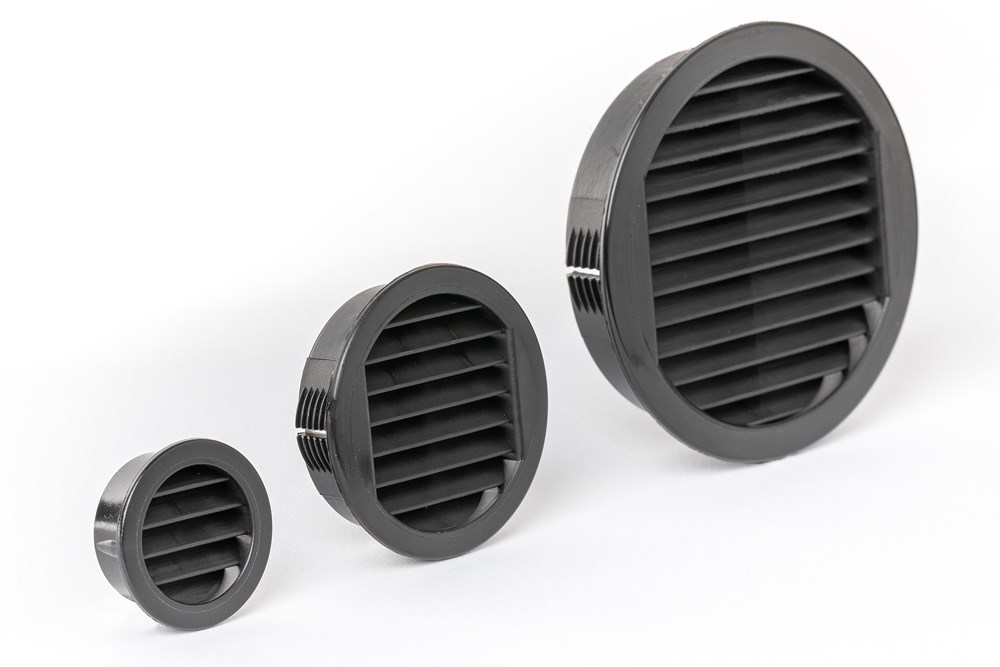

Finned grille (round)
Code
MC000450Version
1
Group
Ventilation - Air terminals (inlet/extract) (MG000004)Release
Drawing
Features
01 | Df | Front diameter (mm) EF022765 - Numeric | |
02 | Di | Inner diameter opening (mm) EF008254 - Numeric | |
03 | Tf | Front thickness (mm) EF016398 - Numeric |
Features port 1
04 | Connection EF000443 - Alphanumeric | ||
05 | Dd1 | Duct diameter (mm) EF021896 - Numeric | |
06 | L1 | Connection length (mm) EF022519 - Numeric | |
07 | Z1 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Finned grille (round)
Finned grille round
