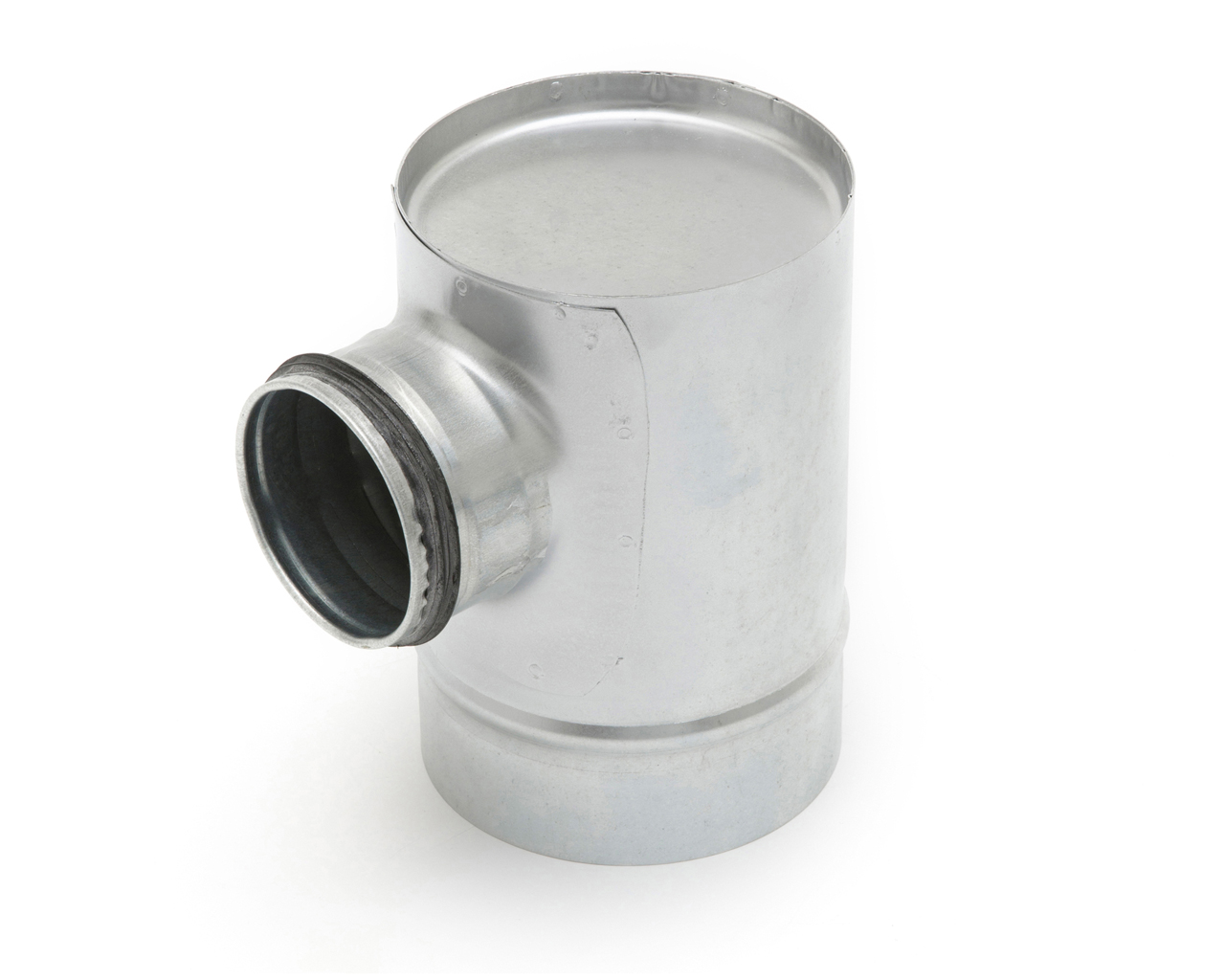

Pot embedding duct with single branch
Code
MC000491Version
2
Group
Ventilation - Ducts and duct fittings (MG000003)Release
Drawing
Features
01 | L | Length (mm) EF001438 - Numeric | |
02 | Li | Insulation length (mm) EF022176 - Numeric | |
03 | s | Wall thickness (mm) EF000229 - Numeric | |
04 | si | Insulation thickness (mm) EF004810 - Numeric |
Features port 1
05 | Dd1 | Duct diameter (mm) EF021896 - Numeric | |
06 | L1 | Connection length (mm) EF022519 - Numeric | |
07 | Z1 | Working length connection (mm) EF016476 - Numeric |
Features port 2
08 | Dd2 | Duct diameter (mm) EF021896 - Numeric | |
09 | L2 | Connection length (mm) EF022519 - Numeric | |
10 | Z2 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Pot embedding duct with single branch
Pot, embedding duct with single branch
Pot, embedding duct with single branche
Pot, with embedding duct
