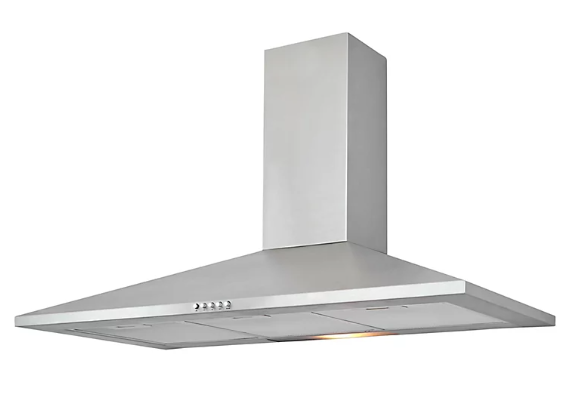

Cooker hood

Code

MC000493

Ventilation - Air terminals (inlet/extract) (MG000004)

Drawing

Features

01	D	Depth (mm) EF000049 - Numeric
02	D1	Depth 1 (mm) EF010952 - Numeric
03	D2	Depth conduit inlet (mm) EF011122 - Numeric
05	H1	Height cap (mm) EF006686 - Numeric
06	H2	Height (mm) EF000040 - Numeric
08	W	Width (mm) EF000008 - Numeric
09	W1	Width (top) (mm) EF025004 - Numeric

Features port 1

04	Dd1	Duct diameter (mm) EF021896 - Numeric
07	L1	Connection length (mm) EF022519 - Numeric
10	Z1	Working length connection (mm) EF016476 - Numeric

Related productclasses

Synonyms

Cooker hood

Cooker hood central exhaust system
