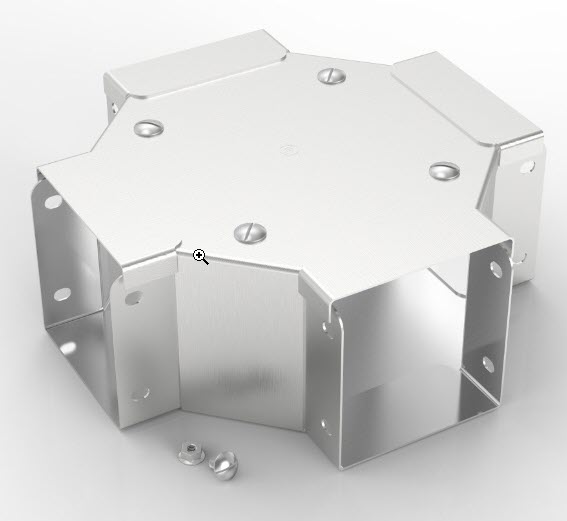

Cross piece, cable duct, rectangular
Code
MC000581Version
1
Group
Electrical - Trunking and surface raceways (MG000053)Release
Drawing
Features
01 | H | Height (mm) EF000040 - Numeric | |
02 | H1 | Height 1 (mm) EF010005 - Numeric | |
03 | IL1 | Inner length (mm) EF022970 - Numeric | |
04 | L1 | Length 1 (mm) EF021554 - Numeric | |
05 | L2 | Length 2 (mm) EF021555 - Numeric | |
06 | L3 | Length 3 (mm) EF021750 - Numeric | |
07 | L4 | Length 4 (mm) EF010951 - Numeric | |
08 | s | Material thickness (mm) EF000386 - Numeric | |
09 | W | Width (mm) EF000008 - Numeric | |
10 | W1 | Width 1 (mm) EF023087 - Numeric |
Related productclasses
Synonyms
Cable duct cross junction
Cross connector for trunking
Cross piece for cable duct
Cross piece for installation duct
Cross piece, cable duct, rectangular
Duct intersection piece
Four-way duct fitting
