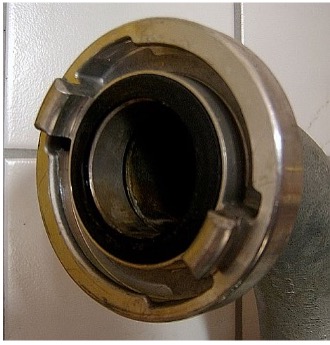

Storz CT000035

Published
Connection Type Classes MG000001

Features 8

  1. 1

    AngleEF008153

    A number in ° · a in drawing

  2. 2

    Cam distanceEF004109

    A number in mm · B in drawing

  3. 3

    Height screw glandEF010040

    A number in mm · C in drawing

  4. 4

    DiameterEF000551

    A number in mm · D in drawing

  5. 5

    Inner diameterEF000065

    A number in mm · Di in drawing

  6. 6

    Nominal diameterEF023191

    Choose one value · DN in drawing

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)7/8 inch1 inch (25)1 1/8 inch1 1/4 inch (32)DN 6
  7. 7

    Outer diameterEF000015

    A number in mm · Do in drawing

  8. 8

    LengthEF001438

    A number in mm · L in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
