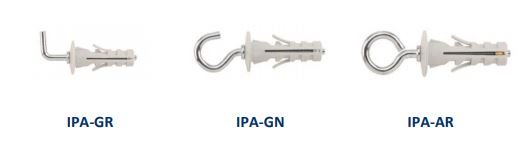

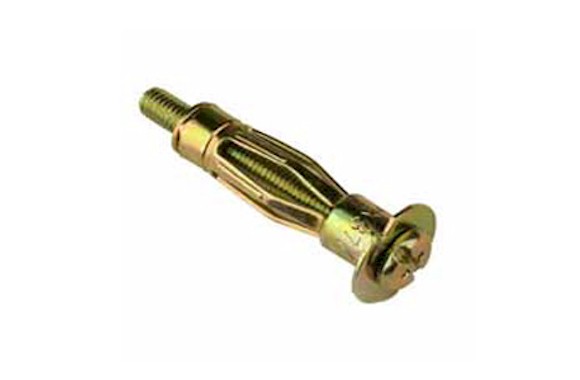

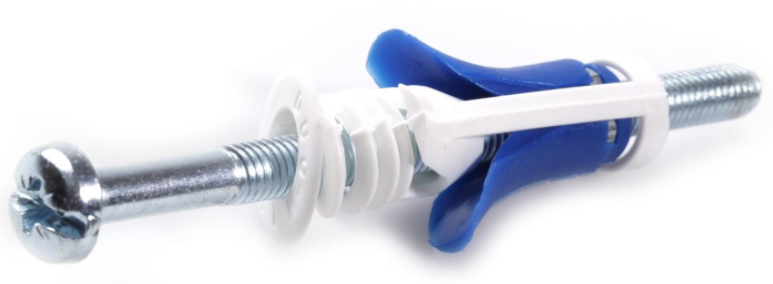

Cavity fixing
EC000040 / v9
Code
EC000040Version
9
Group
Fasteners and anchoring systems (EG020045)Release
DYNAMIC
1 / 4
Features
01 | Material EF002169 - Alphanumeric | |
02 | Surface protection EF000139 - Alphanumeric | |
03 | Drill hole diameter (mm) EF004562 - Numeric | |
04 | Length of anchor plug (mm) EF000382 - Numeric | |
05 | Min. drill hole depth (mm) EF000384 - Numeric | |
06 | Suitable for wall/board thickness (mm) EF015116 - Range | |
07 | Max. fixture thickness (mm) EF026495 - Numeric | |
08 | With thread EF003723 - Logical | |
09 | Thread type EF001758 - Alphanumeric | |
10 | Thread size (metric) EF003563 - Numeric | |
11 | Thread size (imperial) EF003715 - Alphanumeric | |
12 | Pitch thread (mm) EF003712 - Numeric | |
13 | Thread per inch EF012132 - Numeric | |
14 | With screw EF000385 - Logical | |
15 | Screw length (mm) EF013239 - Numeric | |
16 | Head form EF000012 - Alphanumeric | |
17 | Screwing system EF000013 - Alphanumeric |
Synonyms
Cavity dowel
Cavity fixing
Dowel
Hollow ceiling anchor
Mounting element
Plasterboard fixing
