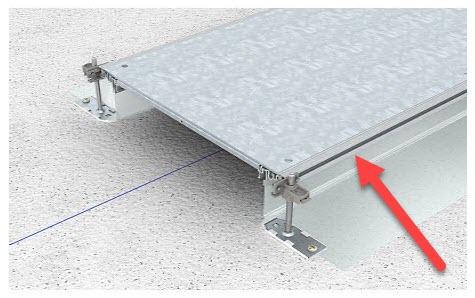

Junction box for subfloor installation
Code
EC000114Version
7
Group
Subfloor electrical installation systems (EG000005)Release
DYNAMIC, ETIM-10.0
Features
01 | Nominal dimension (mm) EF000132 - Numeric | |
02 | Cover model EF009212 - Alphanumeric | |
03 | Suitable for subfloor duct countersunk (closed) EF005792 - Logical | |
04 | Suitable for subfloor duct overhead closed EF006408 - Logical | |
05 | Duct height (mm) EF005459 - Range | |
06 | Duct width (mm) EF007884 - Range | |
07 | Min. height finishing layer (mm) EF007935 - Numeric | |
08 | Levelling range (mm) EF005136 - Range | |
09 | Material side wall EF008133 - Alphanumeric | |
10 | Side wall made of metal mesh EF018324 - Logical | |
11 | Mounting cover insertion EF005088 - Logical | |
12 | Suitable for placing of sealing EF004594 - Logical | |
13 | Decoupling possibility cover from base unit EF007745 - Logical | |
14 | With bottom plate EF004544 - Logical |
Synonyms
Cable box
Junction box for subfloor installation
Junction box for underfloor installation
Terminal box
