CEE plug (IEC 60309)
EC000140 / v10
Code
EC000140Version
10
Group
Industrial sockets/plug applications (EG000014)Release
DYNAMIC
1 / 2
Features
01 | IEC-amperage (A) EF002647 - Numeric | |
02 | Number of poles EF001391 - Numeric | |
03 | Voltage according to EN 60309-2 EF006726 - Alphanumeric | |

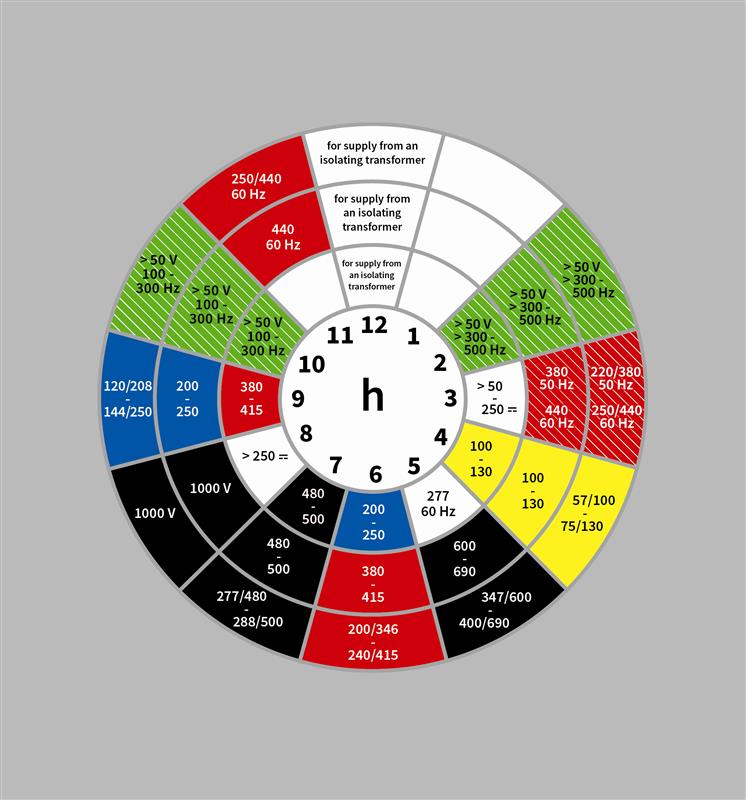

04 | Clock hour position (h) EF006584 - Numeric | |
05 | Identification colour EF006725 - Alphanumeric | |
06 | RAL-number EF000116 - Numeric | |
07 | Phase inverter EF002655 - Logical | |
08 | Degree of protection (IP) EF005474 - Alphanumeric | |
09 | Connection system EF002649 - Alphanumeric | |
10 | Connectable conductor cross section (mm²) EF008200 - Range | |
11 | Suitable for cable diameter (mm) EF005466 - Range | |
12 | Insert direction EF002650 - Alphanumeric | |
13 | Cable entry EF000537 - Alphanumeric | |
14 | Material EF002169 - Alphanumeric | |
15 | Contact material EF004019 - Alphanumeric | |
16 | Surface coating contacts EF002558 - Alphanumeric | |
17 | Military model EF006050 - Logical | |
18 | Amperage according to UL/CSA (for UL-version) (A) EFNA0026 - Numeric |
Synonyms
CEE plug
CEE plug (IEC 60309)
CEE plug for mounting on machines and equipment
Ceeform
CEE-plug
Counter connector
Coupling plug
Disconnect plug
Elbow plug
Phase inverter
Plug
