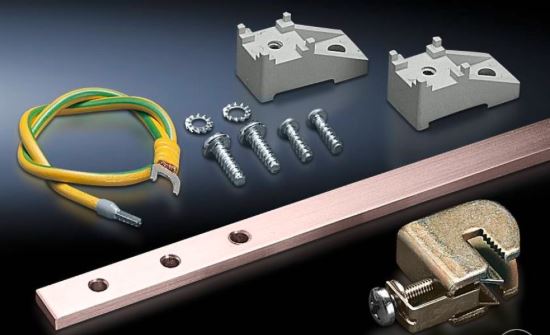

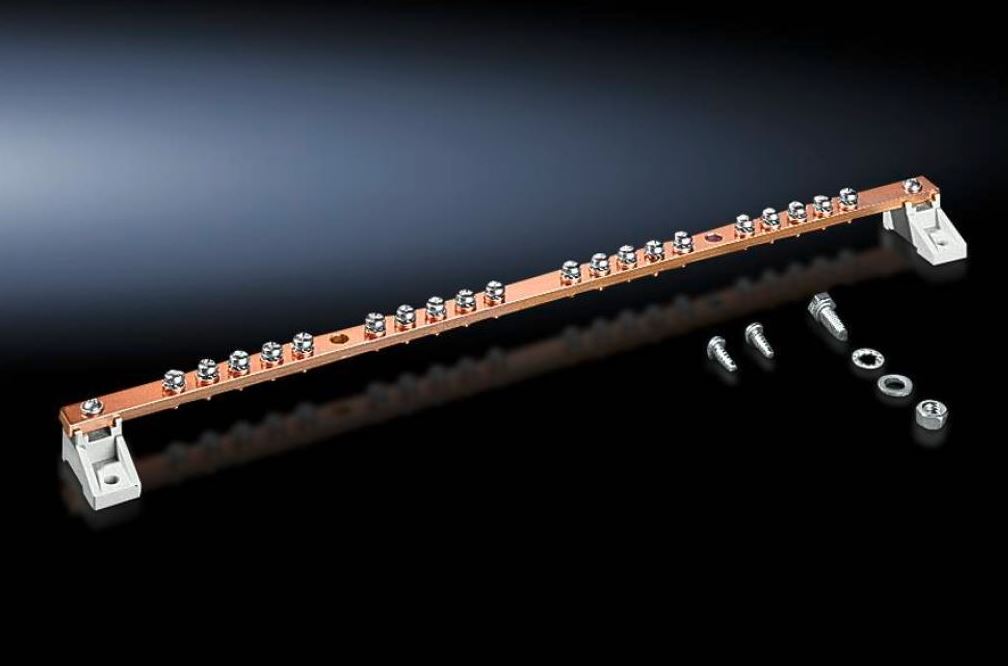

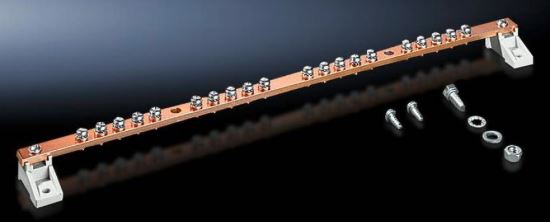

Earthing rail for distribution board
Code
EC000329Version
7
Group
Energy distribution systems (EG000015)Release
DYNAMIC, ETIM-10.0
Features
01 | Number of connections EF000126 - Numeric | |
02 | Rated current (A) EF000227 - Numeric | |
03 | Material EF002169 - Alphanumeric | |
04 | Surface of the contact rail EF004227 - Alphanumeric | |
05 | Rail length (mm) EF010935 - Numeric | |
06 | Rail width (mm) EF003704 - Numeric | |
07 | Busbar thickness (mm) EF002640 - Numeric | |
08 | Clearance from back-plate (mm) EF011973 - Numeric | |
09 | Mounting method EF000003 - Alphanumeric | |
10 | Horizontal mounting EF006051 - Logical | |
11 | Vertical mounting EF024092 - Logical | |
12 | Insulated mounting EF001588 - Logical | |
13 | Max. tightening torque (Nm) EF011415 - Numeric | |
14 | Connection size, connection facility EF020294 - Alphanumeric |
Synonyms
Connection rail
Earthing arrangements
Earthing rail
Earthing rail for distribution board
Neutral busbar
Strip
Stripe
