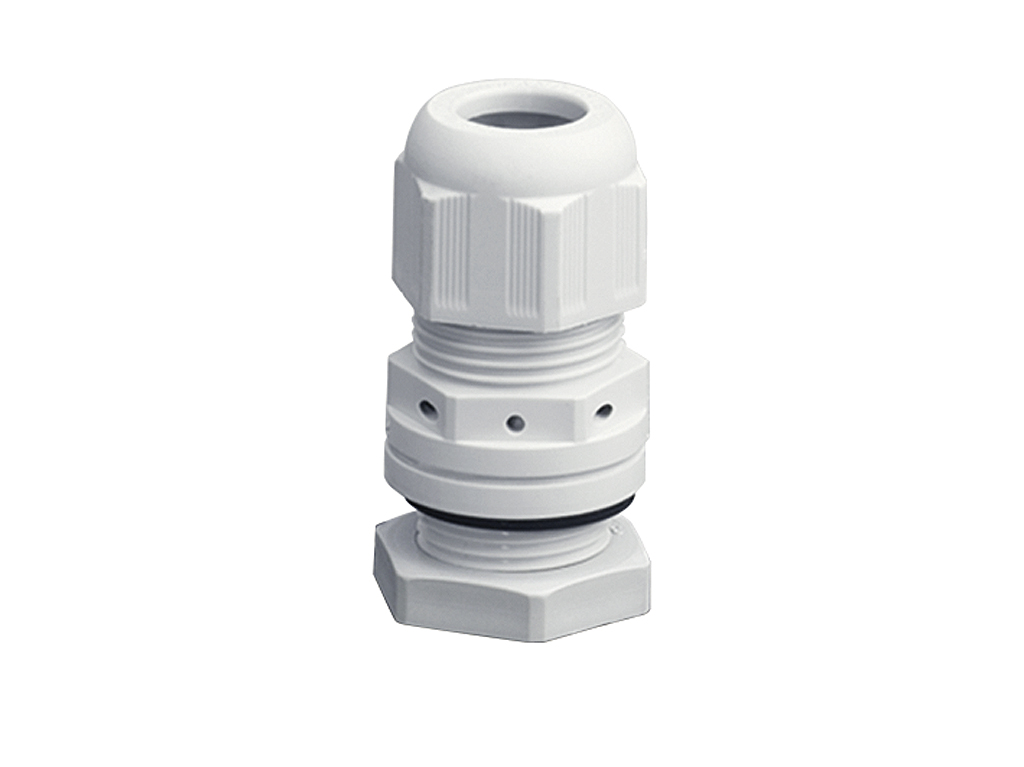

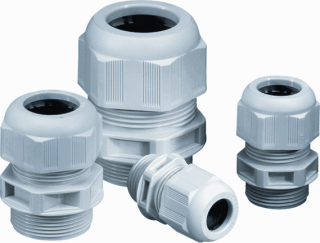

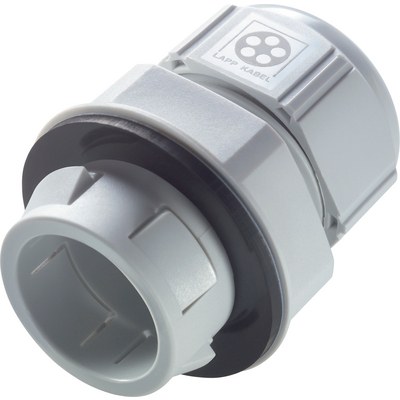

    Cable gland

    Code

    EC000441

    Version

    10

    Group

    Installation material for cables and tubes (EG000010)

    Release

    DYNAMIC, ETIM-10.0
    Features

    01

    Connection type to housing

    EF008847 - Alphanumeric

    02

    Thread type

    EF001758 - Alphanumeric

    03

    Nominal thread size metric/PG

    EF007839 - Numeric

    04

    Nominal thread size inch/gas pipe thread

    EF007838 - Alphanumeric

    05

    Pitch thread (mm)

    EF003712 - Numeric

    06

    Thread length (mm)

    EF000368 - Numeric

    07

    For wall thickness (mm)

    EF007789 - Range

    08

    Wrench width (mm)

    EF000177 - Numeric

    09

    Hexagon angular dimension (mm)

    EF005268 - Numeric

    10

    Suitable for cable diameter (mm)

    EF005466 - Range

    11

    Material

    EF002169 - Alphanumeric

    12

    Material quality

    EF001257 - Alphanumeric

    13

    Surface protection

    EF000139 - Alphanumeric

    14

    Halogen free

    EF000025 - Logical

    15

    Glass-fibre reinforced

    EF001210 - Logical

    16

    Degree of protection (IP)

    EF005474 - Alphanumeric

    17

    Shock resistant

    EF000084 - Logical

    18

    Colour

    EF000007 - Alphanumeric

    19

    RAL-number

    EF000116 - Numeric

    20

    Bend radius protection/trumpet flare

    EF000734 - Logical

    21

    With locknut

    EF005049 - Logical

    22

    Snapping in opening

    EF012547 - Logical

    23

    Model

    EF000010 - Alphanumeric

    24

    Multi seal area

    EF005004 - Logical

    25

    Flat cable coupling

    EF004685 - Logical

    26

    With strain relief

    EF000878 - Logical

    27

    Type of strain relief according to EN 62444

    EF019334 - Alphanumeric

    28

    Type of sealing

    EF001217 - Alphanumeric

    29

    Material sealing

    EF022606 - Alphanumeric

    30

    Separable screw gland

    EF005337 - Logical

    31

    Operating temperature (°C)

    EF001742 - Range

    32

    Explosion-tested version

    EF004191 - Logical

    33

    For Ex-zone gas

    EF005728 - Alphanumeric

    34

    For Ex-zone dust

    EF008404 - Alphanumeric

    35

    For armoured cable

    EF012184 - Logical

    36

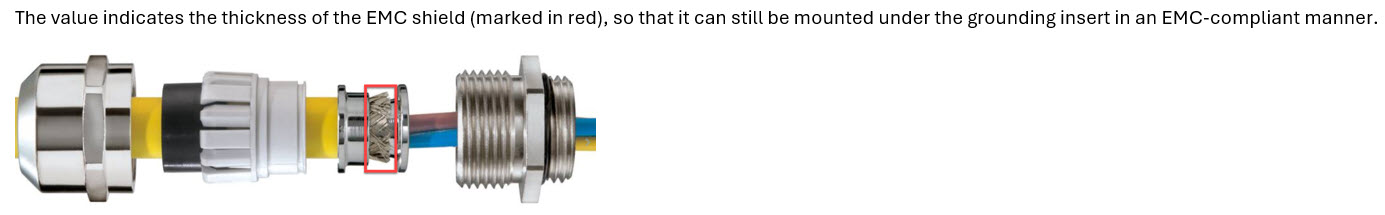

    EMC-version

    EF001062 - Logical

    37

    Screened

    EF000881 - Logical

    38

    Pressure-compensating

    EF024919 - Logical

    39

    Ignition protection according to DIN 60079

    EFDE0116 - Alphanumeric
    Synonyms

    All-purpose plug

    Blind

    Blind cap

    Blind cap explosion proof

    Blind plate

    Blind plug explosion proof

    Cable entry

    Cable entry explosion proof

    Cable gland

    Cable glands

    Cable screw gland

    Dowel

    Dummy plug

    Dust cap

    Explosion proof blind cap

    Explosion proof blind plug

    Explosion proof cable entry

    Explosion proof cable gland

    Explosion proof plug

    Explosion proof sealing cap

    Explosion proof sealing plug

    Explosion proof stop

    Flat cable coupling

    Gland nut

    Plug

    Seal ring

    Sealing cap

    Sealing plug

    Sealing plug explosion proof

    Sealing ring

    Stop plug

    Stuffing

    Stuffing explosion proof

    Swivel

    Trumpet gland
