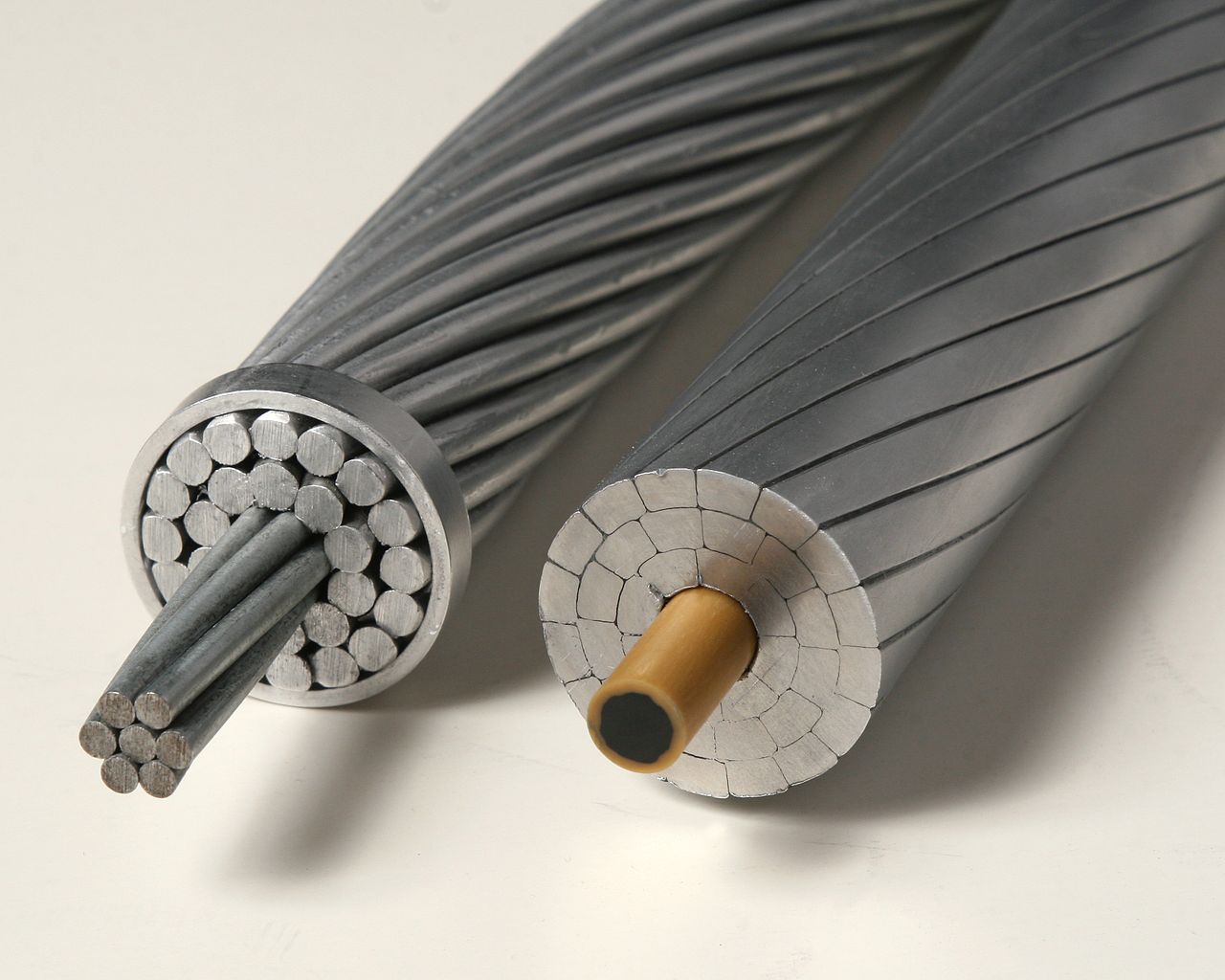

Power cable for overhead lines
EC001139 / v9
Code
EC001139Version
9
Group
Cables and wires (unassembled) (EG000001)Release
DYNAMIC
Features
01 | Conductor material EF001622 - Alphanumeric | |
02 | Conductor surface EF010804 - Alphanumeric | |
03 | Nominal cross section conductor (mm²) EF000060 - Numeric | |
04 | AWG size EF011789 - Alphanumeric | |
05 | Nominal cross section conductor (AWG) (kcmil) EF011790 - Numeric | |
06 | Material core insulation EF000061 - Alphanumeric | |
07 | Specification core insulation EF011805 - Alphanumeric | |
08 | Number of cores EF001792 - Numeric | |
09 | Core identification EF000067 - Alphanumeric | |
10 | Suspension element EF001794 - Alphanumeric | |
11 | Material outer sheath EF001625 - Alphanumeric | |
12 | Specification material outer sheath EF011806 - Alphanumeric | |
13 | Outer diameter approximate (mm) EF003921 - Numeric | |
14 | Nominal voltage U0 (kV) EF001790 - Numeric | |
15 | Nominal voltage U (kV) EF001615 - Numeric | |
16 | Weight (kg/km) EF000167 - Numeric |
Synonyms
Cable
Insulated power cable for overhead lines
Power cable for overhead lines
