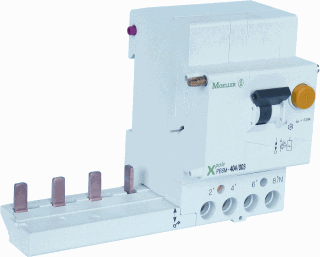

    Residual current circuit breaker (RCCB) module

    Code

    EC002297

    Version

    8

    Group

    Circuit breakers and fuses (EG000020)

    Release

    DYNAMIC, ETIM-10.0, ETIM-9.0
    nl 2BA se RSK be InstallData fi Sahkonumerot
    Features

    01

    Nominal voltage (V)

    EF005127 - Range

    02

    Nominal current (A)

    EF000001 - Numeric

    03

    Rated fault current adjustable

    EF008874 - Logical

    04

    Rated fault current (A)

    EF003975 - Range

    05

    Max. delay time (ms)

    EF001421 - Numeric

    06

    Delay adjustable

    EF001420 - Logical

    07

    Number of poles

    EF001391 - Numeric

    08

    Leakage current type

    EF002560 - Alphanumeric

    09

    Surge current capacity (kA)

    EF002564 - Numeric

    10

    Frequency

    EF005455 - Alphanumeric

    11

    Rated insulation voltage Ui (V)

    EF001366 - Numeric

    12

    Rated impulse withstand voltage Uimp (kV)

    EF011980 - Numeric

    13

    Power loss (W)

    EF005387 - Numeric

    14

    Connectable conductor cross section solid-core (mm²)

    EF007337 - Range

    15

    Connectable conductor cross section multi-wired (mm²)

    EF007343 - Range

    16

    Anti-nuisance tripping version

    EF009497 - Logical

    17

    With interlocking device

    EF007385 - Logical

    18

    Degree of protection (IP)

    EF005474 - Alphanumeric

    19

    Pollution degree

    EF002570 - Numeric

    20

    Ambient temperature during operating (°C)

    EF007515 - Range
    Synonyms

    Residual current circuit breaker (RCCB) module
