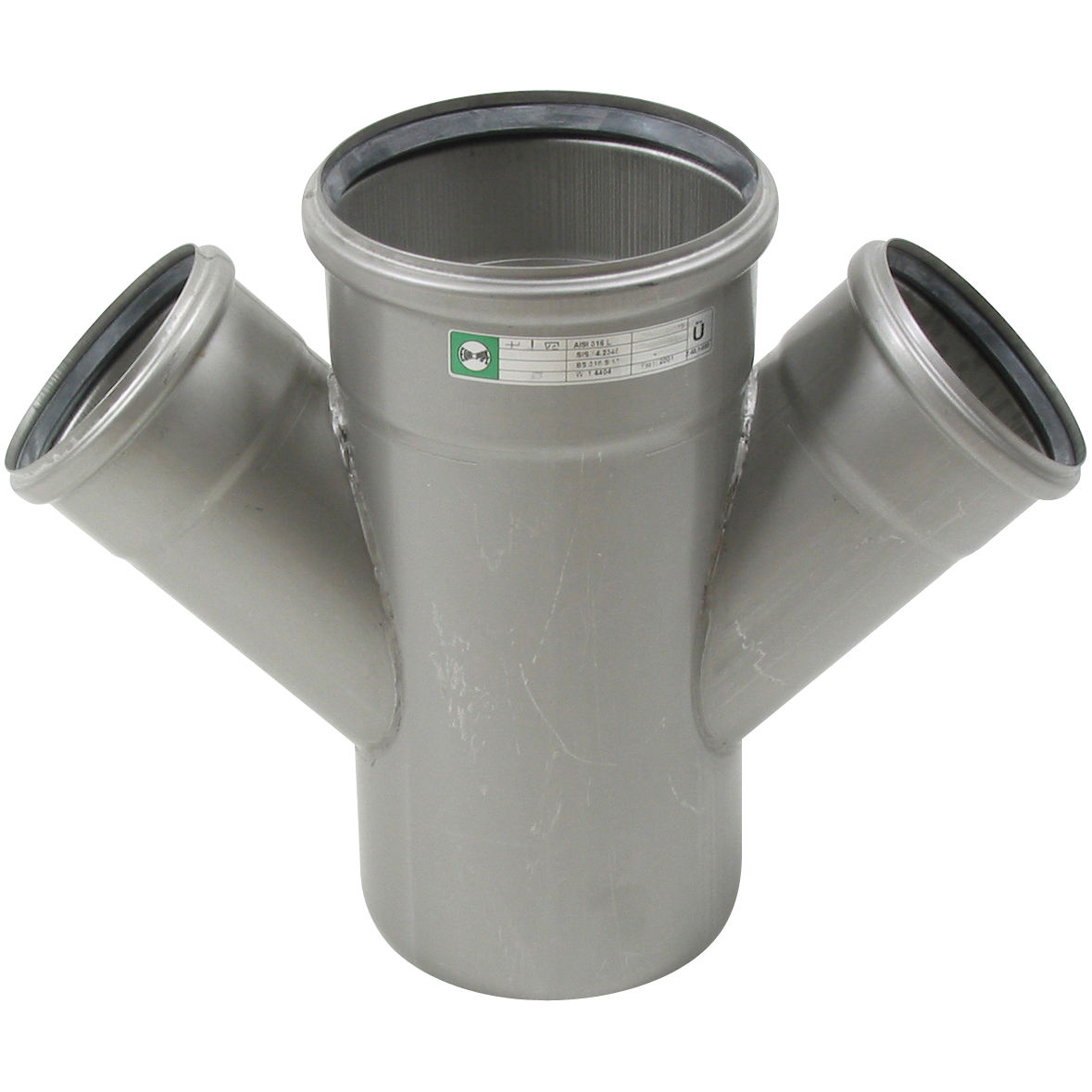

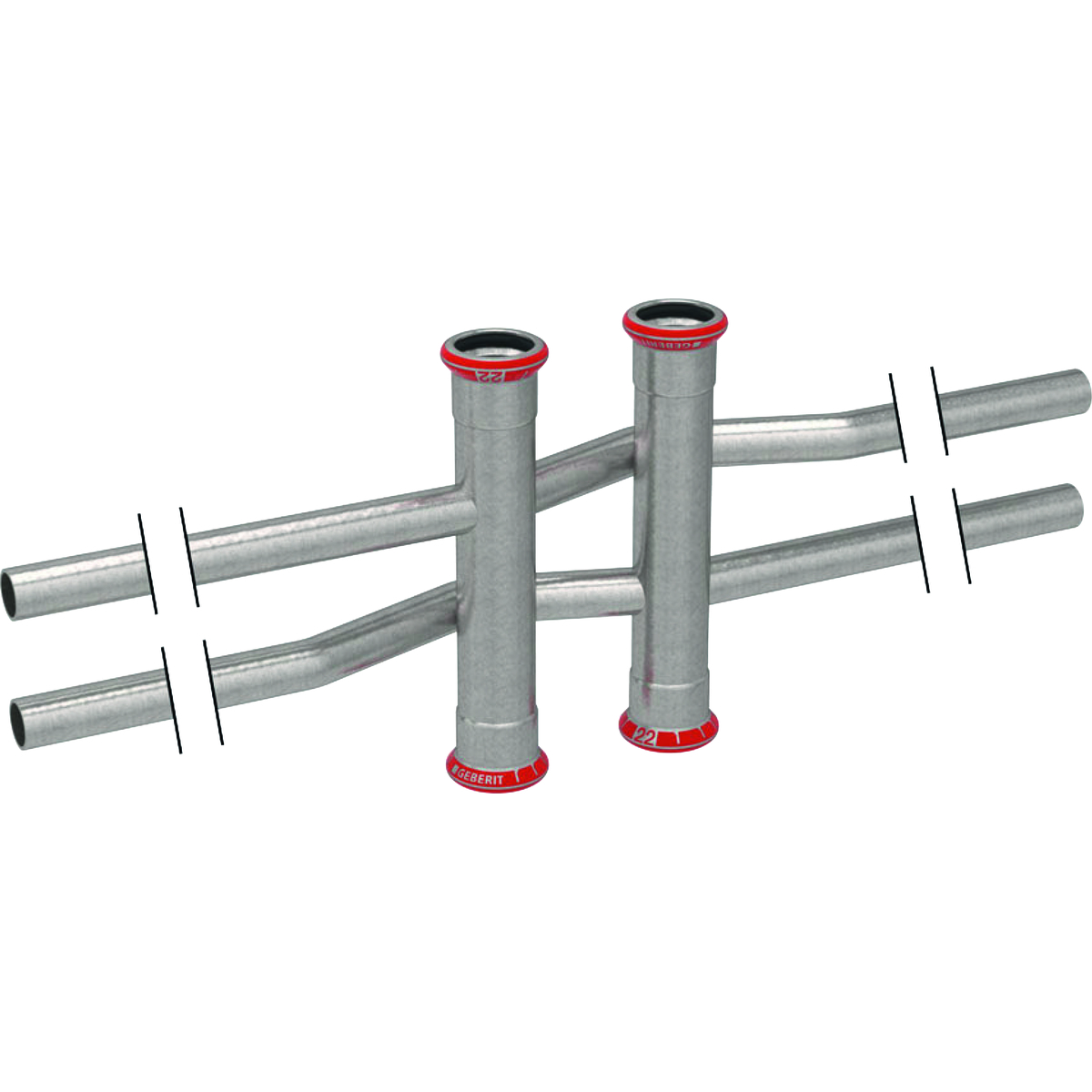

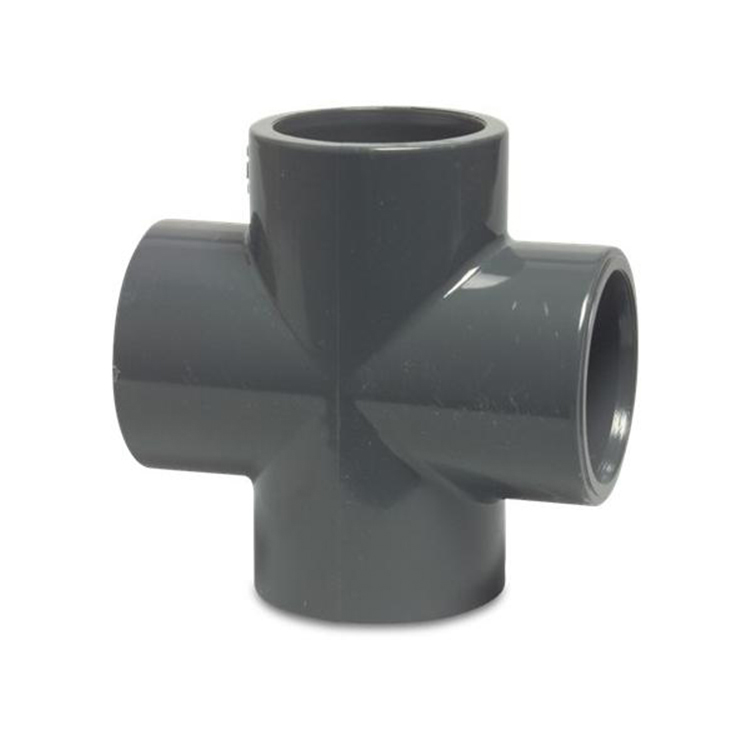

Fitting with 4 connections EC003026

A pipe fitting with four outlet or connection points.

Ready for publication Fittings, flanges and connectors EG015540

/

Changes since v4

Features 67

1
MaterialEF002169

Choose one value

AluminiumBronzeCuNiFeCast ironCeramicsCopperBrassStainless steelRubberSteelZincAcrylonitrile butadiene styrene (ABS)Polybutylene (PB)Polyethylene (PE)Polyoxymethylene (POM)Polypropylene (PP)Polyphenylsulfone (PPSU)Polyvinyl chloride (PVC)Polyvinylidene fluoride (PVDF)Other
2
Material qualityEF001257

Choose one value

Al 99.0 (3.0205)Al 99.5 (3.0255)Al 99.9 (3.0305)Alloyed steelAluminium bronzeASTM A536 Grade 65-45-12ASTM A743 CF8Brass CW625N (CuZn35Pb1.5AlAs)Bronze (Rg 5)Bronze (Rg 7)Bronze (Rg 12)Cast iron EN-GJL-200 (GG 20)Cast iron EN-GJL-250 (GG 25)Cast iron EN-GJS-400-15 (GGG 40)Cast iron EN-GJS-400-18 (GGG 40.3)Cast steelCu-DHP (CW024A)CuNi10Fe1MnCuNi10Fe1.6MnCuSn5Zn5Pb2CuSn4Zn2PSCuSn5Zn5Pb5-CCuZn21Si3P (CW724R)CuZn33Pb1.5AlAs (CW626N)CuZn36Pb3 (CW603N)CuZn36Pb2As (CW602N)CuZn36Pb-C (CC770S)CuZn38As (CW511L)CuZn39Pb2 (CW612N)CuZn39Pb3 (CW614N)CuZn40Pb2 (CW617N)CuZn42 (CW510L)Dezincification resistant brass (DZR)EN AW-5083 (AlMg4.5Mn)EN AW-5754 (AlMg3)EN AW-6060 T5(AlMgSi)EN AW-6082 T6(AlSi1MgMn)EN-GJMW-400-5 (EN-JM1030)Ethylene-propylene diene monomer rubber (EPDM)Fibre-reinforced plasticForged steelMalleable cast ironNitrile rubber (NBR)PE-40PE-50PE-80PE-100PE-reinforcedPE diffusion-tightPP-CPP-GFPP-HPP-MDPP-RPP-SPVC-CPVC-CPEPVC recycledPVC-OPVC-URst 37.2 (1.0038)Rst 37.3 N (1.0116)Rst 37.3 U (1.0114)Stainless steel 304 (1.4301)Stainless steel 304 L (1.4306)Stainless steel 316 (1.4401)Stainless steel 316 L (1.4404)Stainless steel 316 Ti (1.4571)Stainless steel 321 (1.4541)StonewareSt 33 (1.0035)St 34.2 (1.0034)St 35 (1.0308)St 35.8 (1.0305)St 37 (1.0254)St 37.2 (1.0037)St 37.8 (1.0345)St 44.0 (1.0256)St 44.2 (1.0044)St 44.3 annealed (1.0144)St 44.3 unannealed (1.0431)St 50.2 (1.0050)St 52.0 (1.0421)St 52.3 annealed (1.0570)St 52.3 unannealed (1.0553)St 60.2 (1.0060)St 70.2 (1.0070)TT St 35 N (1.0356)Ust 37.2 (1.0036)Zinc-poor bronze (Rg 10)Zinc-free bronze (90/10)Other
3
Surface protectionEF000139

Choose one value

UntreatedCoveredGalvanic/electrolytic zinc platedHot-dip galvanisedCoatedLacqueredWelding primerPowder coatingChromium-platedNickel-platedTinnedOther
4
Surface treatmentEF025109

Choose one value

UntreatedPickledEtchedPolishedSandedGrindedBlastedOther
5
ModelEF000010

Choose one value

Cross piece 90°Cross piece 88.5°Cross piece 45°Right-angled double T-piece 90°Right-angled double T-piece 45°Ball pieceT piece with side pieceOther
6
Swept entry type (with inner radius)EF009970

Yes or no

YesNo
7
ReducingEF022617

Yes or no

YesNo
8
Multi-partEF025783

Yes or no

YesNo
9
System specificEF025253

Yes or no

YesNo
10
Nominal diameter connection 1EF023193

Choose one value

1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch1 1/2 inch (40)1 3/4 inch1 7/8 inch2 inch (50)2 1/4 inch2 3/8 inch2 1/2 inch (65)3 inch (80)3 1/2 inch4 inch (100)5 inch (125)6 inch (150)7 inch (175)8 inch (200)10 inch (250)12 inch (300)DN 6DN 8DN 10DN 12DN 15DN 18DN 20DN 25DN 32DN 34DN 40DN 41DN 50DN 54DN 60DN 63DN 65DN 70DN 75DN 80DN 90DN 100DN 110DN 125DN 150DN 160DN 175DN 200DN 250DN 300DN 315DN 350DN 355DN 400DN 450DN 500DN 600DN 630DN 700DN 710DN 800DN 900DN 1000DN 1200DN 1400DN 1600DN 1800DN 2000M8 x 1.0M10 x 1.0M10 x 1.25M12 x 1.25M12 x 1.5M14 x 1.5M16 x 1.5M18 x 1.5M20 x 1.5M22 x 1.5M24 x 1.5M24 x 2.0M26 x 1.5M27 x 2.0M30 x 2.0M36 x 3.0M45 x 2.0Other
11
Outer pipe diameter connection 1EF020122

A number in mm
12
Wall thickness, connection 1EF021603

A number in mm
13
Wall thickness connecting pipe, connection 1EF016801

A number in mm
14
Connection 1EF000321

Choose one value

BayonetInternal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread flare (UNF)External thread conical (NPT)External thread metricExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread flare (UNF)Electric welded sleeveEuroconus according to EN 16313Euroconus standardlessFlangeGrooveInsert (push-fitting)Clamp connectionCompression ringShrink sleevePlastic welded endPlastic welded sleeveLaminateWelding connectionGlued endGlued sleevePress sleeveSlide endSlide sleeveHose pillarSoldered endSoldered sleeveSpigot/tube endUnion nutOther
15
Nominal diameter connection 2EF020052

Choose one value

1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch1 1/2 inch (40)1 3/4 inch1 7/8 inch2 inch (50)2 1/4 inch2 3/8 inch2 1/2 inch (65)3 inch (80)3 1/2 inch4 inch (100)5 inch (125)6 inch (150)7 inch (175)8 inch (200)10 inch (250)12 inch (300)DN 6DN 8DN 10DN 12DN 15DN 18DN 20DN 25DN 32DN 34DN 40DN 41DN 50DN 54DN 60DN 63DN 65DN 70DN 75DN 80DN 90DN 100DN 110DN 125DN 150DN 160DN 175DN 200DN 250DN 300DN 315DN 350DN 355DN 400DN 450DN 500DN 600DN 630DN 700DN 710DN 800DN 900DN 1000DN 1200DN 1400DN 1600DN 1800DN 2000M8 x 1.0M10 x 1.0M10 x 1.25M12 x 1.25M12 x 1.5M14 x 1.5M16 x 1.5M18 x 1.5M20 x 1.5M22 x 1.5M24 x 1.5M24 x 2.0M26 x 1.5M27 x 2.0M30 x 2.0M36 x 3.0M45 x 2.0Other
16
Outer pipe diameter connection 2EF020123

A number in mm
17
Wall thickness, connection 2EF021604

A number in mm
18
Wall thickness connecting pipe, connection 2EF016802

A number in mm
19
Connection 2EF000322

Choose one value

BayonetInternal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread flare (UNF)External thread conical (NPT)External thread metricExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread flare (UNF)Electric welded sleeveEuroconus according to EN 16313Euroconus standardlessFlangeGrooveInsert (push-fitting)Clamp connectionCompression ringShrink sleevePlastic welded endPlastic welded sleeveLaminateWelding connectionGlued endGlued sleevePress sleeveSlide endSlide sleeveHose pillarSoldered endSoldered sleeveSpigot/tube endUnion nutOther
20
Nominal diameter connection 3EF020053

Choose one value

1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch1 1/2 inch (40)1 3/4 inch1 7/8 inch2 inch (50)2 1/4 inch2 3/8 inch2 1/2 inch (65)3 inch (80)3 1/2 inch4 inch (100)5 inch (125)6 inch (150)7 inch (175)8 inch (200)10 inch (250)12 inch (300)DN 6DN 8DN 10DN 12DN 15DN 18DN 20DN 25DN 32DN 34DN 40DN 41DN 50DN 54DN 60DN 63DN 65DN 70DN 75DN 80DN 90DN 100DN 110DN 125DN 150DN 160DN 175DN 200DN 250DN 300DN 315DN 350DN 355DN 400DN 450DN 500DN 600DN 630DN 700DN 710DN 800DN 900DN 1000DN 1200DN 1400DN 1600DN 1800DN 2000M8 x 1.0M10 x 1.0M10 x 1.25M12 x 1.25M12 x 1.5M14 x 1.5M16 x 1.5M18 x 1.5M20 x 1.5M22 x 1.5M24 x 1.5M24 x 2.0M26 x 1.5M27 x 2.0M30 x 2.0M36 x 3.0M45 x 2.0Other
21
Outer pipe diameter connection 3EF020124

A number in mm
22
Wall thickness, connection 3EF021353

A number in mm
23
Wall thickness connecting pipe, connection 3EF018194

A number in mm
24
Connection 3EF020065

Choose one value

BayonetInternal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread flare (UNF)External thread conical (NPT)External thread metricExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread flare (UNF)Electric welded sleeveEuroconus according to EN 16313Euroconus standardlessFlangeGrooveInsert (push-fitting)Clamp connectionCompression ringShrink sleevePlastic welded endPlastic welded sleeveLaminateWelding connectionGlued endGlued sleevePress sleeveSlide endSlide sleeveHose pillarSoldered endSoldered sleeveSpigot/tube endUnion nutOther
25
Nominal diameter connection 4EF020054

Choose one value

1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch1 1/2 inch (40)1 3/4 inch1 7/8 inch2 inch (50)2 1/4 inch2 3/8 inch2 1/2 inch (65)3 inch (80)3 1/2 inch4 inch (100)5 inch (125)6 inch (150)7 inch (175)8 inch (200)10 inch (250)12 inch (300)DN 6DN 8DN 10DN 12DN 15DN 18DN 20DN 25DN 32DN 34DN 40DN 41DN 50DN 54DN 60DN 63DN 65DN 70DN 75DN 80DN 90DN 100DN 110DN 125DN 150DN 160DN 175DN 200DN 250DN 300DN 315DN 350DN 355DN 400DN 450DN 500DN 600DN 630DN 700DN 710DN 800DN 900DN 1000DN 1200DN 1400DN 1600DN 1800DN 2000M8 x 1.0M10 x 1.0M10 x 1.25M12 x 1.25M12 x 1.5M14 x 1.5M16 x 1.5M18 x 1.5M20 x 1.5M22 x 1.5M24 x 1.5M24 x 2.0M26 x 1.5M27 x 2.0M30 x 2.0M36 x 3.0M45 x 2.0Other
26
Outer pipe diameter connection 4EF020125

A number in mm
27
Wall thickness, connection 4EF021354

A number in mm
28
Wall thickness connecting pipe, connection 4EF018195

A number in mm
29
Connection 4EF020066

Choose one value

BayonetInternal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread flare (UNF)External thread conical (NPT)External thread metricExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread flare (UNF)Electric welded sleeveEuroconus according to EN 16313Euroconus standardlessFlangeGrooveInsert (push-fitting)Clamp connectionCompression ringShrink sleevePlastic welded endPlastic welded sleeveLaminateWelding connectionGlued endGlued sleevePress sleeveSlide endSlide sleeveHose pillarSoldered endSoldered sleeveSpigot/tube endUnion nutOther
30
Contour codeEF025254

Choose one value

UniversalBBEDWFF/THHEHRMSASCTHUUPVTH/BETH/UBE/HEM/VOther
31
Flange pressure ratingEF020149

Choose one value

PN 2.5PN 6PN 10PN 16PN 24PN 25PN 40PN 63PN 100PN 160PN 200PN 250PN 320PN 350PN 400Other
32
Flange standardEF021694

Choose one value

ANSIDINJISOther
33
Material sealingEF022606

Choose one value

Alkyl acrylate copolymer (ACM)Chlorinated isobutylene isoprene rubber (CIIR)Polychloroprene (CR)Chlorosulfonated polyethylene (CSM)Ethylene oxide copolymer (ECO)Ethylene-propylene diene monomer rubber (EPDM)Fluorosilicones (FMVQ)Fluorelastomer rubber (FPM/FKM)Hydrogenated acrylonitrile butadiene rubber (HNBR)Isobutylene isoprene rubber (IIR, butyl rubber)BrassMetal-sealing (no longer used)Methyl vinyl silicone rubber (VMQ)Nitrile rubber (NBR)Natural rubber (NR)PFPMPolytetrafluoroethylene (PTFE)Styrene butadiene rubber (SBR)SiliconeThermoplastic elastomer (TPE)Carboxylated nitrile butadiene rubber (XNBR)Other
34
Main colour fittingEF016081

Choose one value

AluminiumBlackBrassBronzeBrownCopperGreenGreyOrangeStainless steelWhiteOther
35
Length of connection 1EF020151

A number in mm
36
Working length connection 1EF020153

A number in mm
37
Length of connection 2EF020152

A number in mm
38
Working length connection 2EF020154

A number in mm
39
Length of connection 3EF020159

A number in mm
40
Working length connection 3EF020160

A number in mm
41
Length of connection 4EF020169

A number in mm
42
Working length connection 4EF020168

A number in mm
43
Wrench widthEF000177

A number in mm
44
Wrench width union nutEF022259

A number in mm
45
Medium temperature (continuous)EF023182

A range, from and to, in °C
46
Max. operating pressure at max. medium temperatureEF014099

A number in bar
47
Max. operating pressure at 20 °CEF023116

A number in bar
48
Ring stiffness classEF010669

Choose one value

SN1SN2SN4SN8SN10SN12SN16SN20SN22Other
49
Standard Dimension Ratio (SDR)EF010670

A number
50
With thermal insulationEF023821

Yes or no

YesNo
51
With sealing rings/gasketsEF020047

Yes or no

YesNo
52
With buffer studEF020217

Yes or no

YesNo
53
CappedEF020028

Yes or no

YesNo
54
FM quality markEF021905

Yes or no

YesNo
55
LPCB quality markEF021909

Yes or no

YesNo
56
DIN-CERTCO certificateEFDE0006

Yes or no

YesNo
57
VdS quality markEFDE0010

Yes or no

YesNo
58
With approval for TÜVEFDE0031

Yes or no

YesNo
59
DVGW quality mark for gasEFDE0048

Yes or no

YesNo
60
DVGW quality mark for waterEFDE0049

Yes or no

YesNo
61
UL quality markEFNA0027

Yes or no

YesNo
62
ULC quality markEFNA0028

Yes or no

YesNo
63
KIWA certifiedEFNL0001

Yes or no

YesNo
64
Gastec QA markEFNL0002

Yes or no

YesNo
65
KOMO certifiedEFNL0003

Yes or no

YesNo
66
Gastec QA - AR 214 (H2)EFNL0016

Yes or no

YesNo
67
Type approval according to BBR/EKSEFSE0002

Yes or no

YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.


1 / 7

Also known as

Angle fittingBall piece with 4 connectionsCapillary fittingClamp fittingClamp fitting with 4 connectionsClamping-strip fitting with 4 connectionsClick fittingCompression fittingCompression ring fittingCompression ring fitting with 4 connectionsCross fittingCross pieceDouble TeeDouble T-pieceExtending cross pieceFitting with 4 connectionsFlanged fitting with 4 connectionsGlue fittingGlue fitting with 4 connectionsGrooved fitting with 4 connectionsKruisfittingLaminated fitting with 4 connectionsMalleable fittingsOngoing Y-piecePush fitting with 4 connectionsReduced cross fittingRunning Y-pieceSliding fittingSliding fitting with 4 connectionsSoldered fitting with 4 connectionsSoldering fittingSystem fitting with 4 connectionsT distributorT piece with side pieceT-connectorTee with side branchThreaded fittingThreaded fitting with 4 connectionsT-piece with side branchT-piece with side gutterTransition crossTransition fittingTransition fitting with 4 connectionsTransition pieceWeld fittingWelded fittingWelded-on cross fittingWelded-on fitting with 4 connectionsWelded-on plastic fitting with 4 connectionsY-piece continuous

About this class

Group: Fittings, flanges and connectors EG015540
Sectors: W, M
In releases: Dynamic
