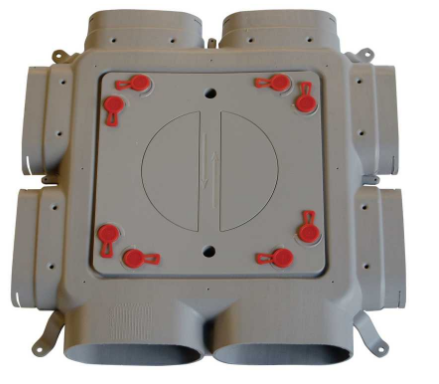

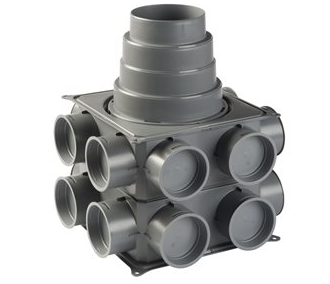

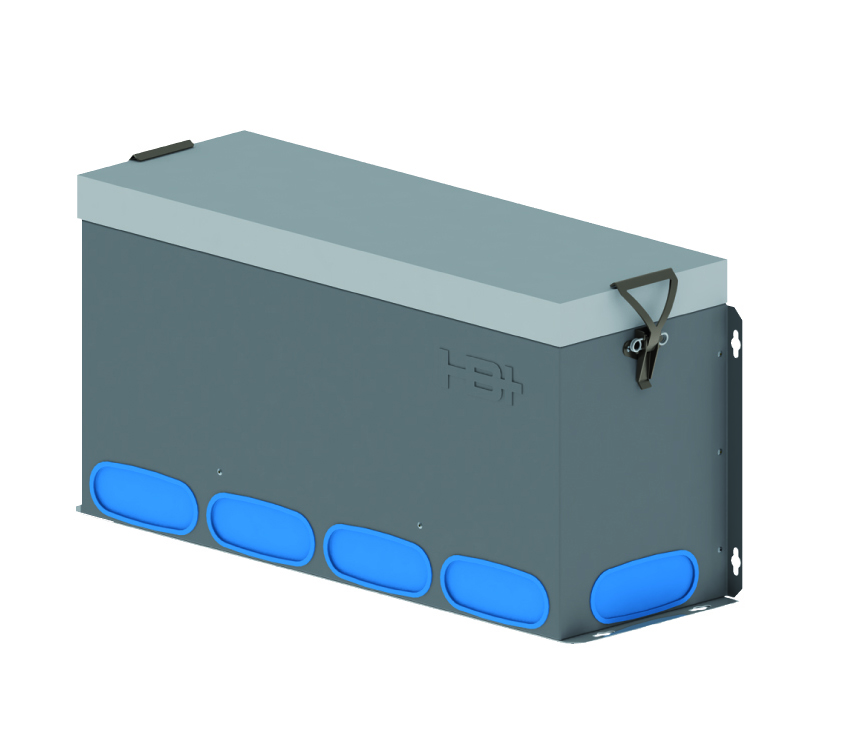

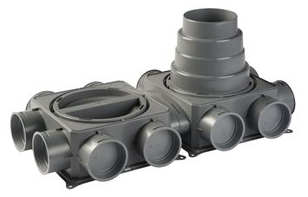

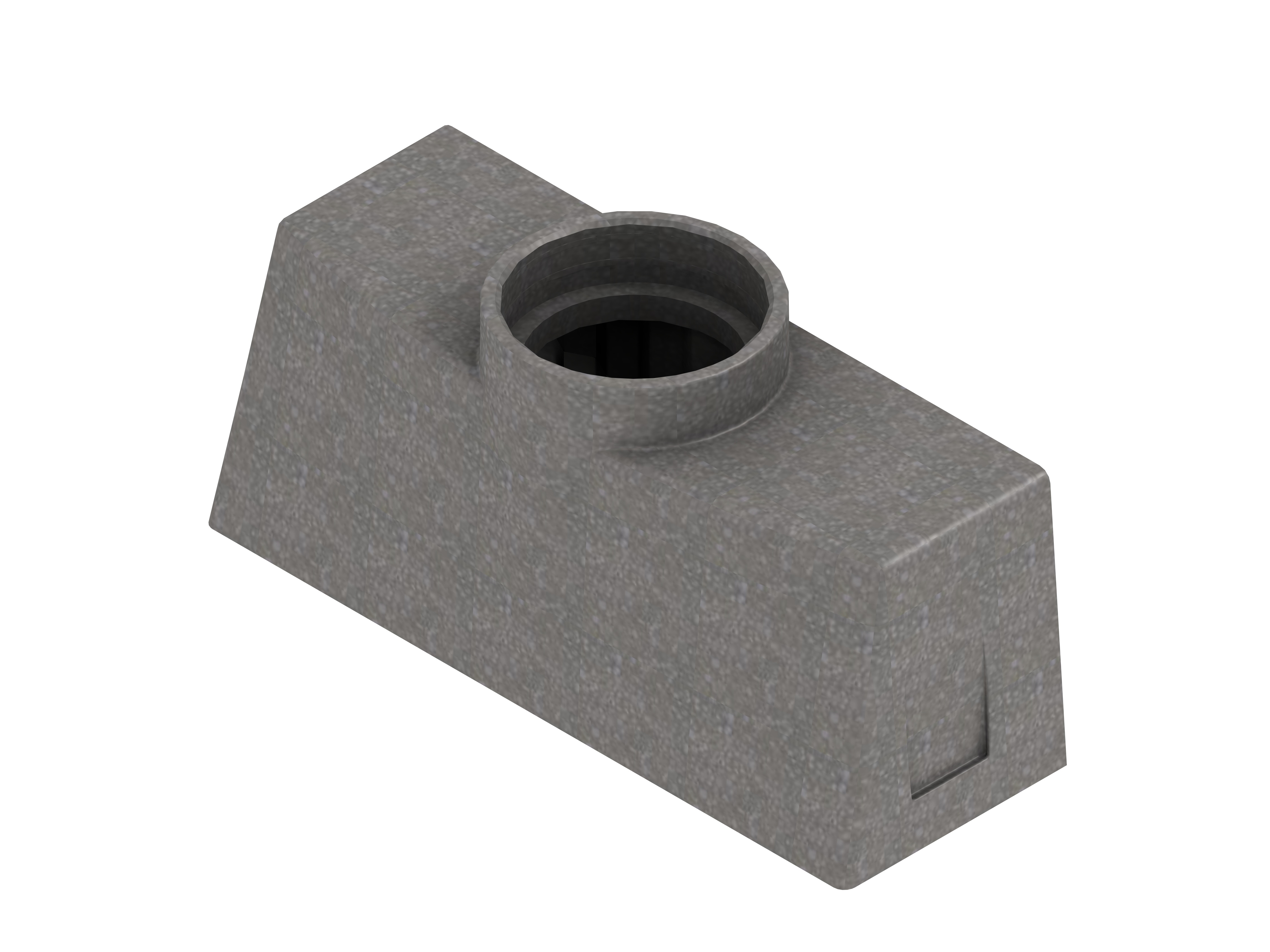

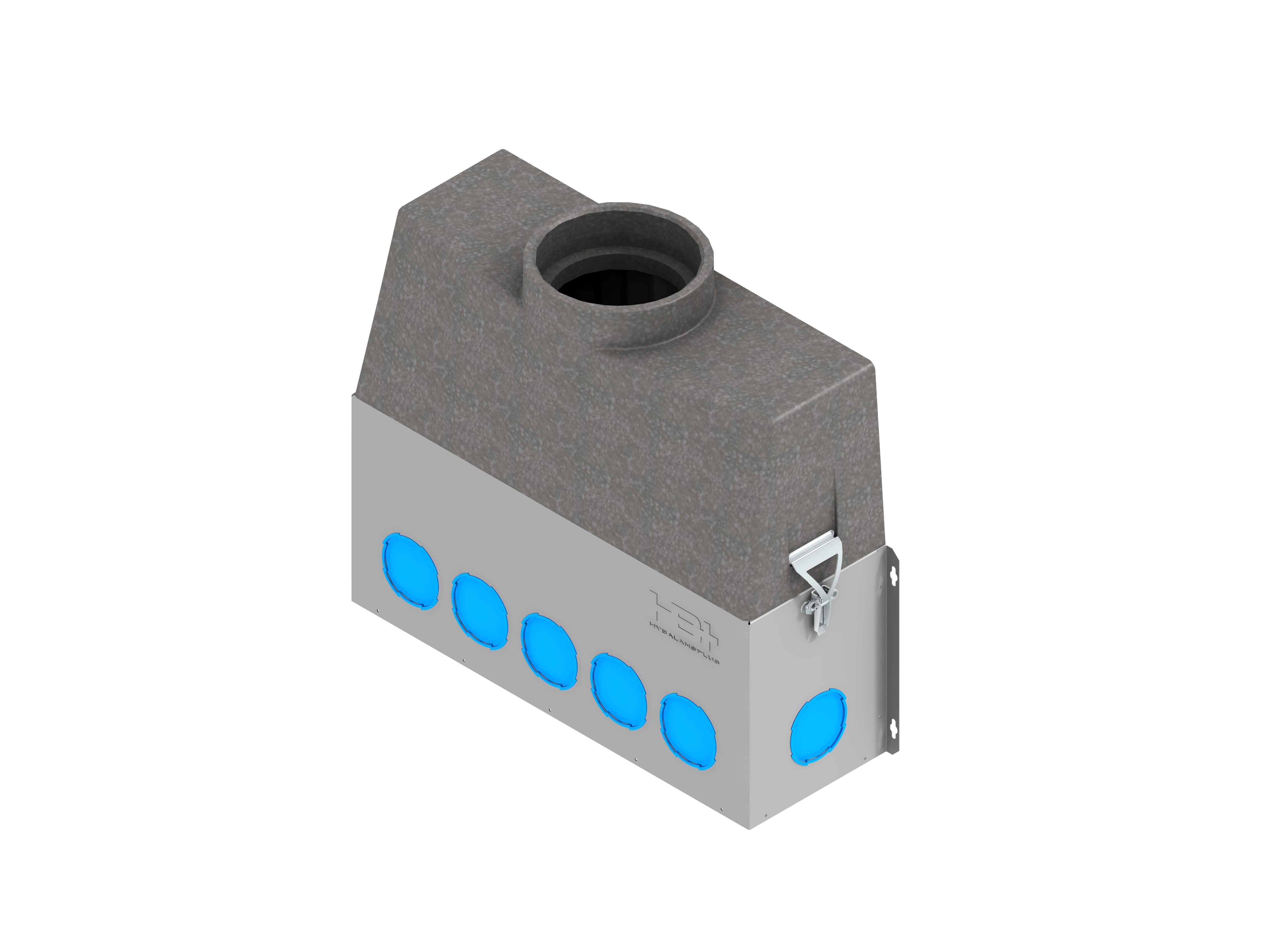

Air distribution box
EC004181 / v3
Code
EC004181Version
3
Group
Components for flue gas and ventilation systems (EG020062)Release
DYNAMIC, ETIM-10.0
1 / 8
Features
01 | Air supply EF024146 - Logical | |
02 | Air extraction EF024268 - Logical | |
03 | Type of housing EF006980 - Alphanumeric | |
04 | Material EF002169 - Alphanumeric | |
05 | Material quality EF001257 - Alphanumeric | |
06 | Surface protection EF000139 - Alphanumeric | |
07 | Nominal duct diameter, main duct EF013991 - Alphanumeric | |
08 | Connection main duct EF022545 - Alphanumeric | |
09 | Number of branches EF002511 - Numeric | |
10 | Shape of branches EF013992 - Alphanumeric | |
11 | Connection branches EF020427 - Alphanumeric | |
12 | Nominal duct diameter, branches (mm) EF022448 - Numeric | |
13 | Equivalent duct diameter, branches (mm) EF013993 - Numeric | |
14 | Nominal duct height branches (mm) EF013994 - Numeric | |
15 | Nominal duct width branches (mm) EF013995 - Numeric | |
16 | Length (mm) EF001438 - Numeric | |
17 | Width (mm) EF000008 - Numeric | |
18 | Height (mm) EF000040 - Numeric | |
19 | With inspection opening and cover EF009760 - Logical | |
20 | Bottom connection EF021674 - Logical | |
21 | Embeddable in concrete EF013996 - Logical | |
22 | Max. air volume (m³/h) EF002607 - Numeric |
Synonyms
Air distribution box
Exhaust collector, oval air duct
Exhaust collector, round air duct
